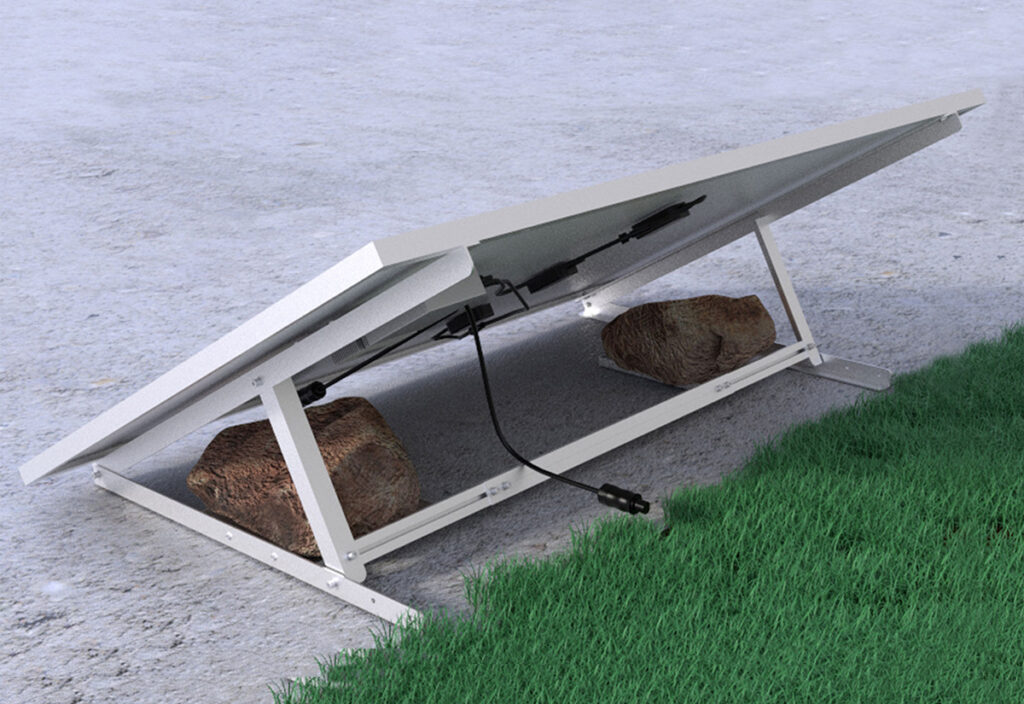

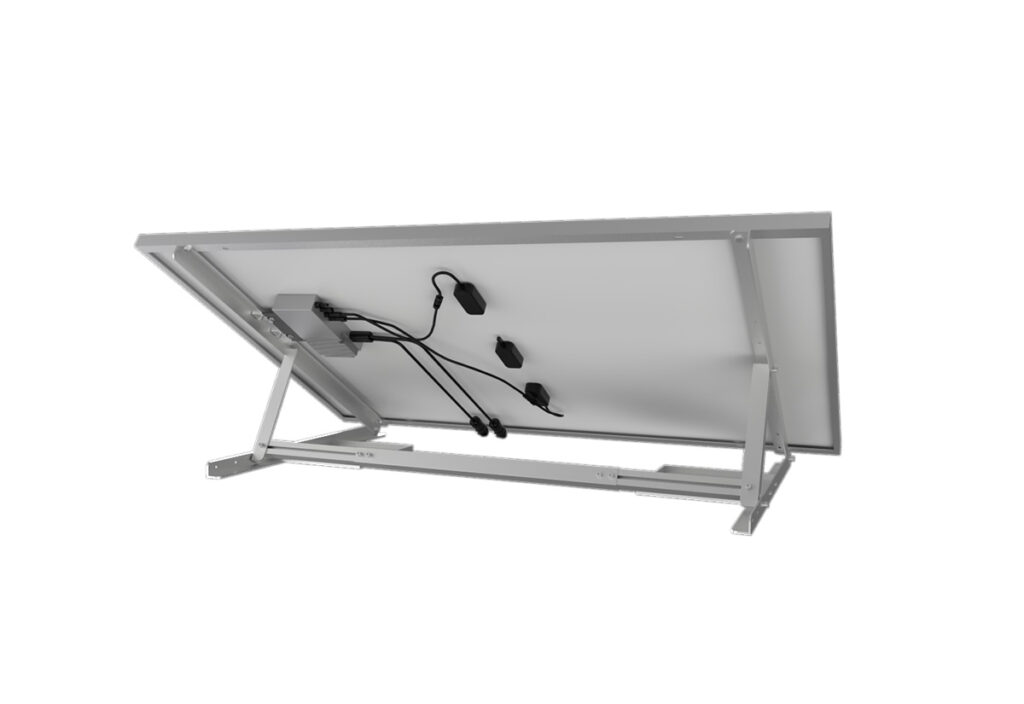

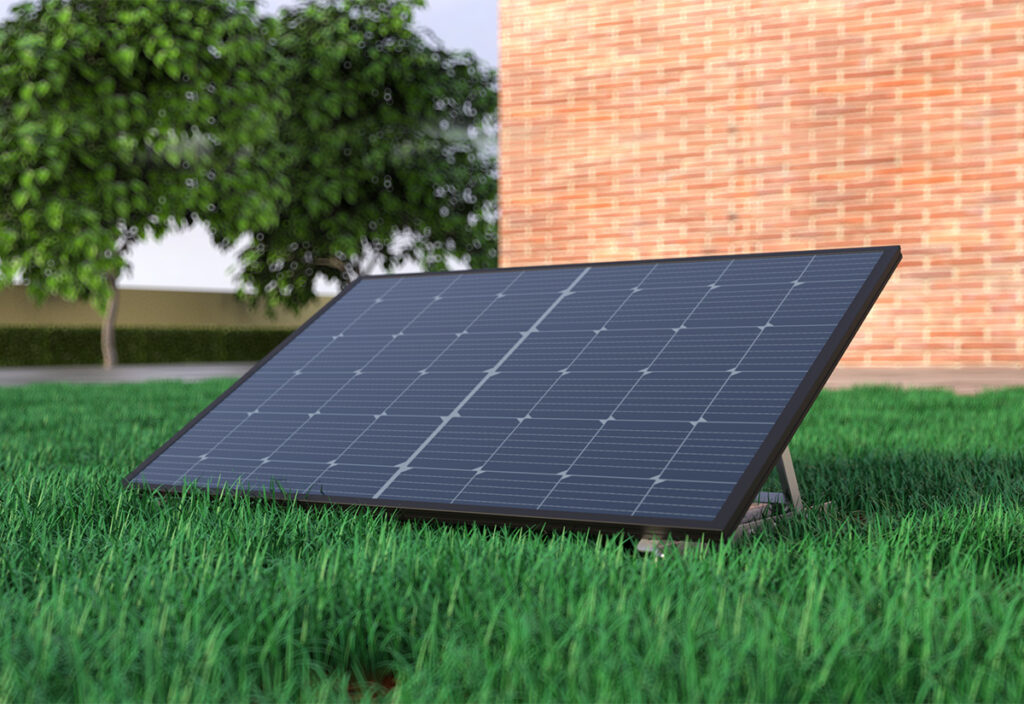

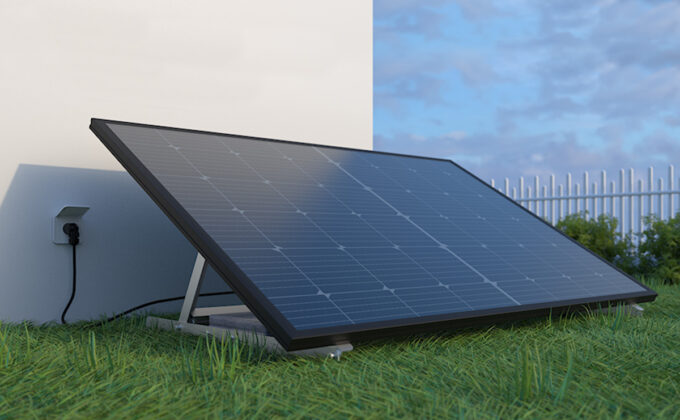

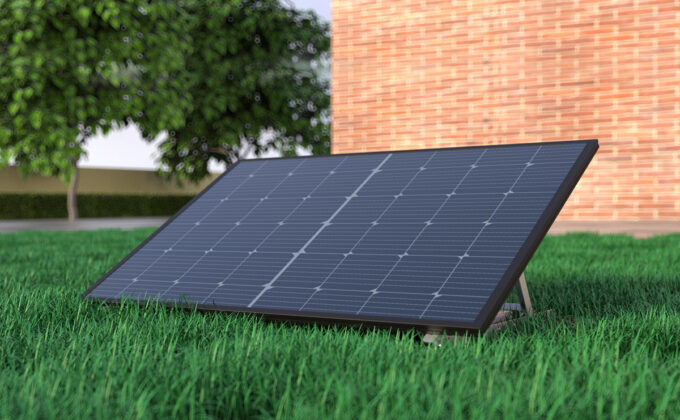

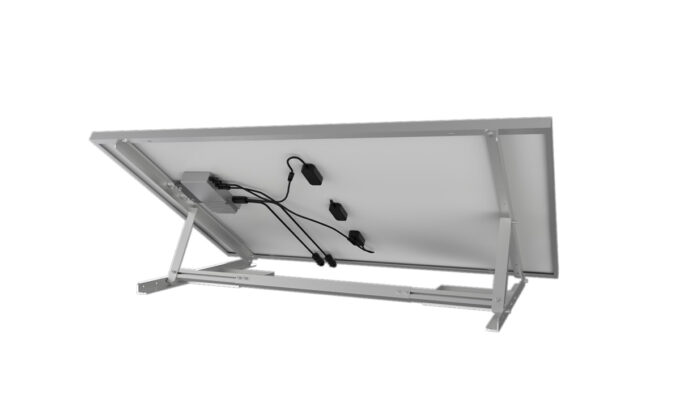

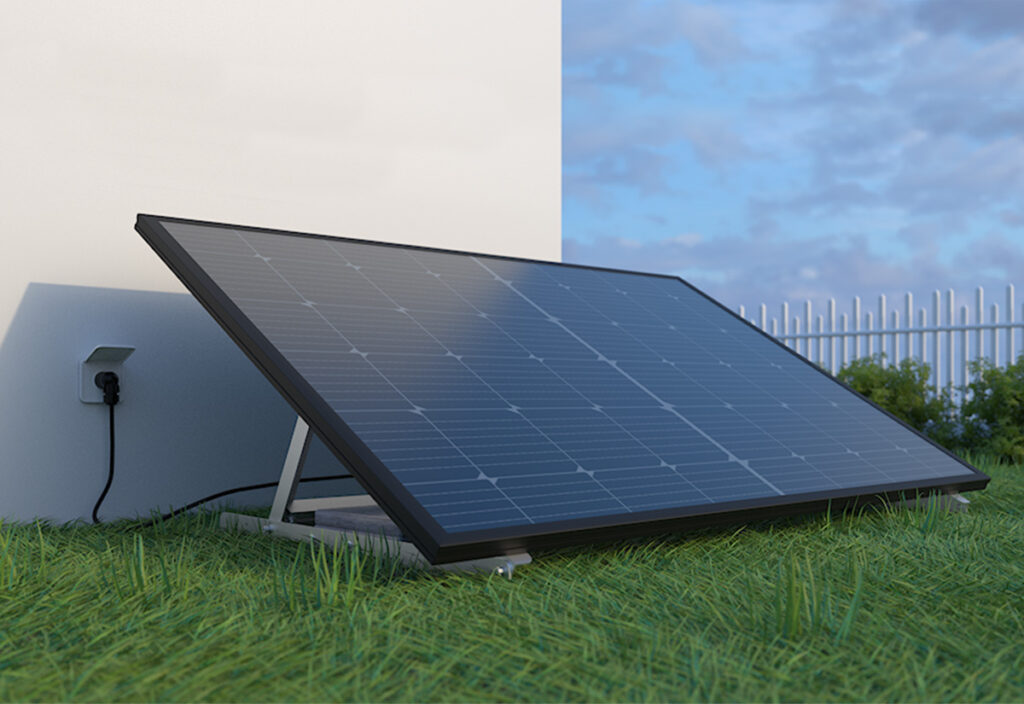

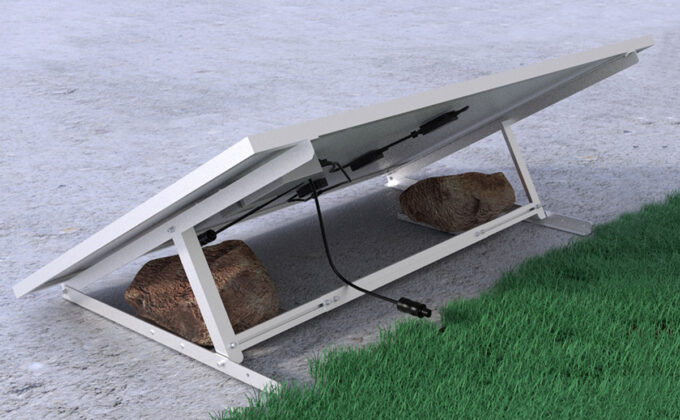

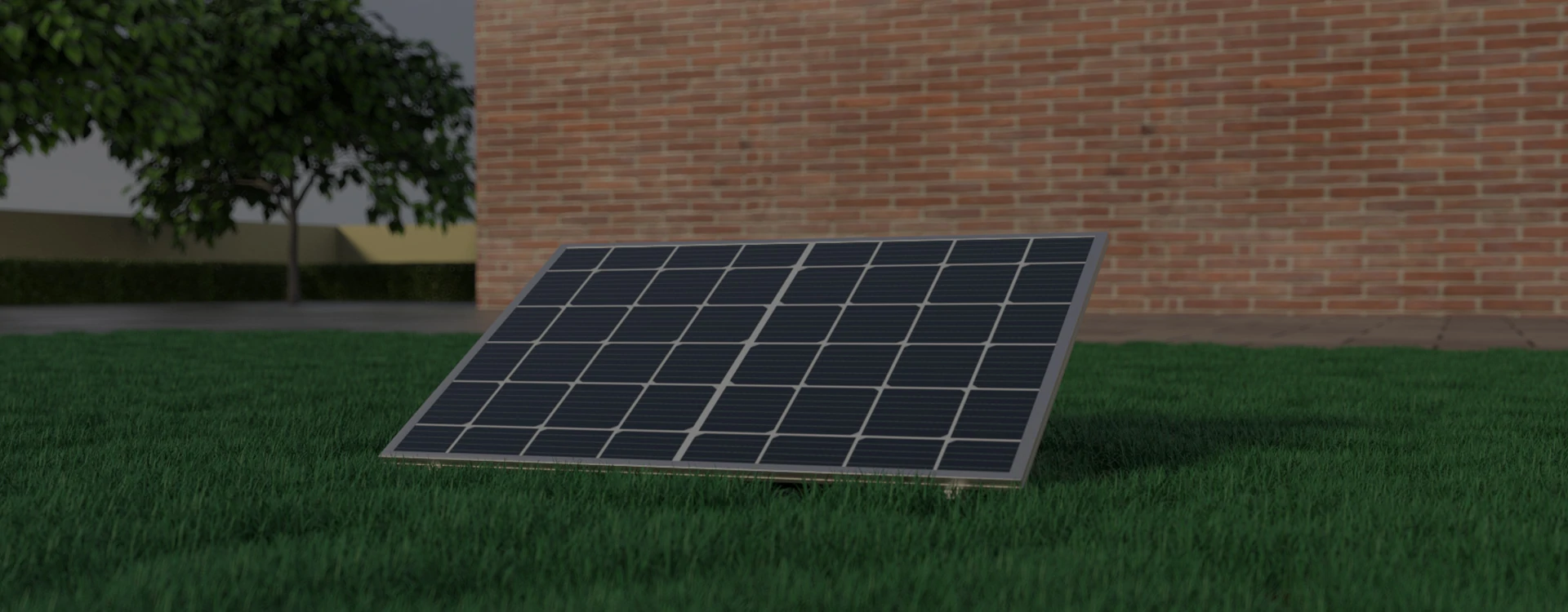

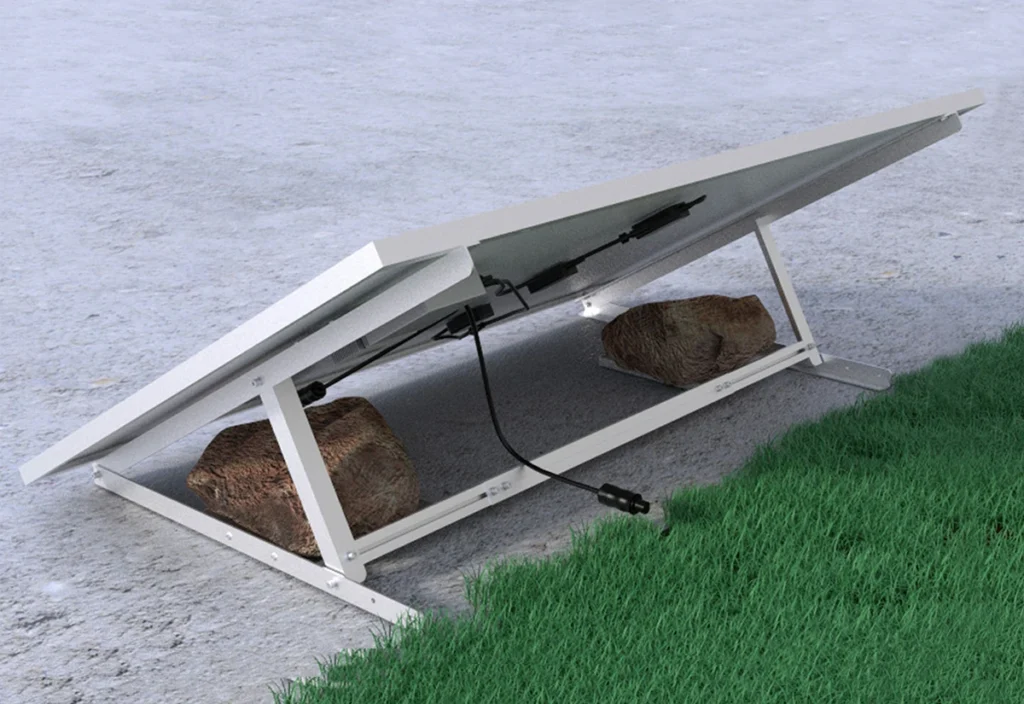

Ground Mounted Solar Bracket
Model No:SG-B
Dimension:
- For solar panels 1724 * 1134 * 30/35mm
- Can be customized for diã erent size of solar panel
Material:Aluminum alloy

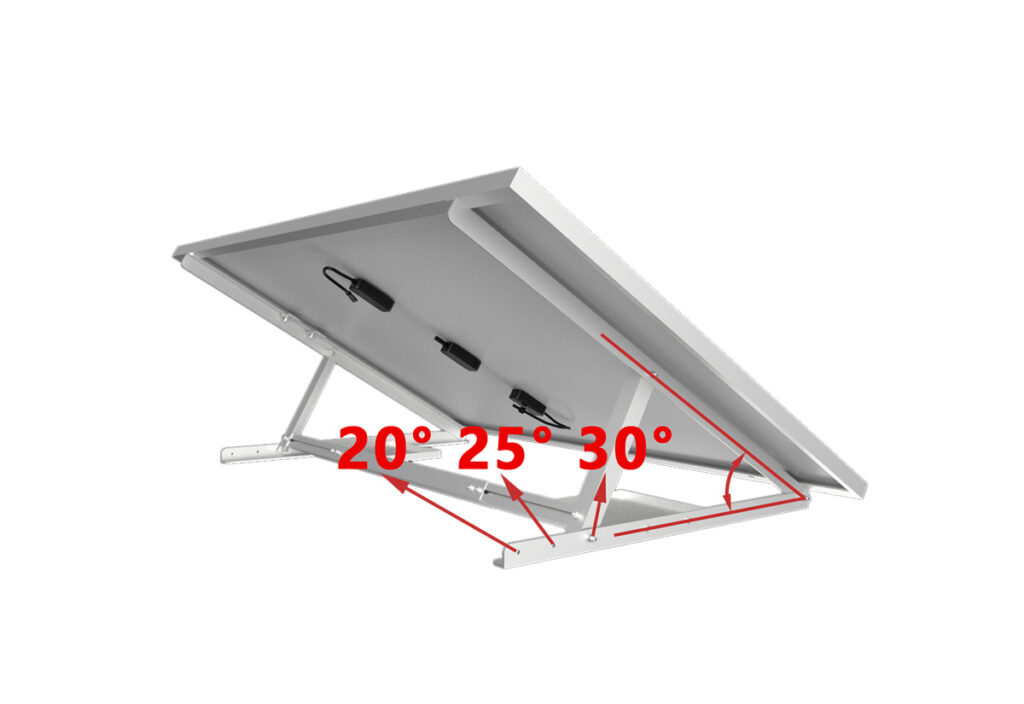

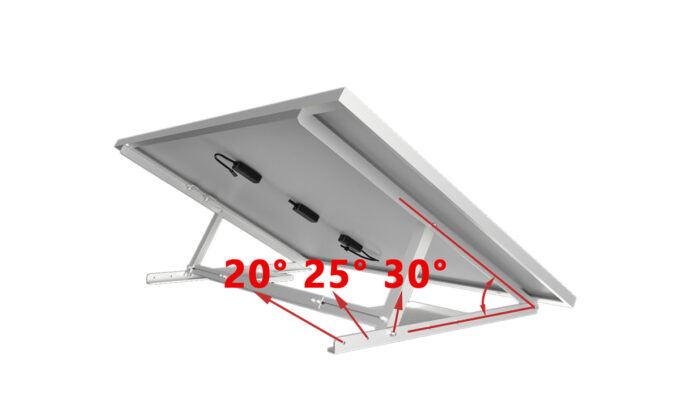

- Angle of inclination:20° , 25° , 30°
- Suitable for: Ground
Description
- Portable and movable for any location
- Easy to expand solar panel
- Fast, simple installation
Parameter

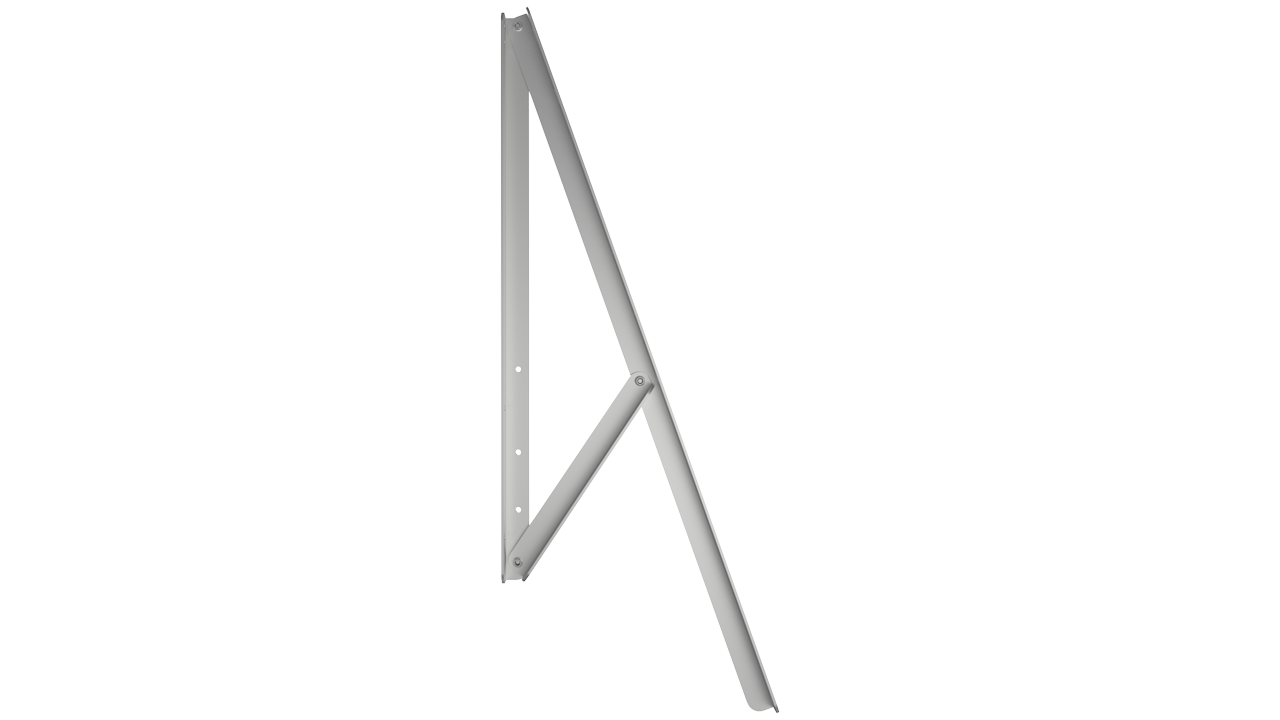

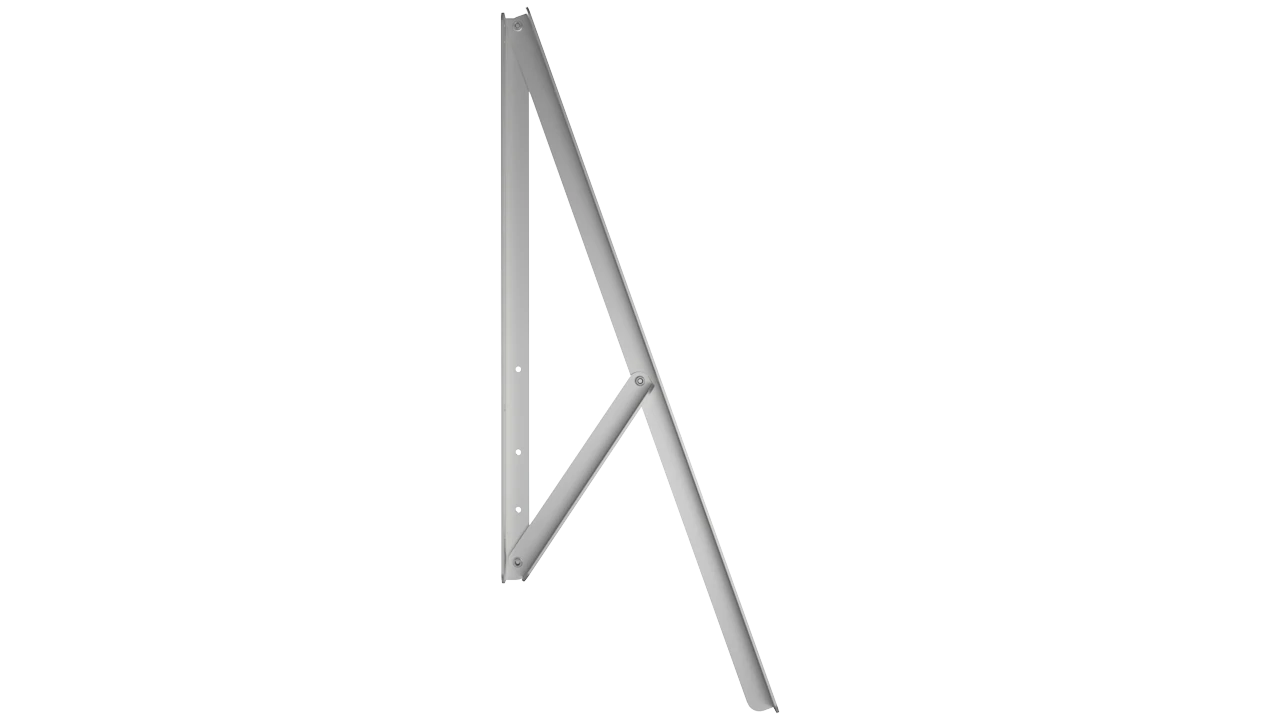

Triangle Bracket
L:1150mm,880mm,370mm
T:4.0mm

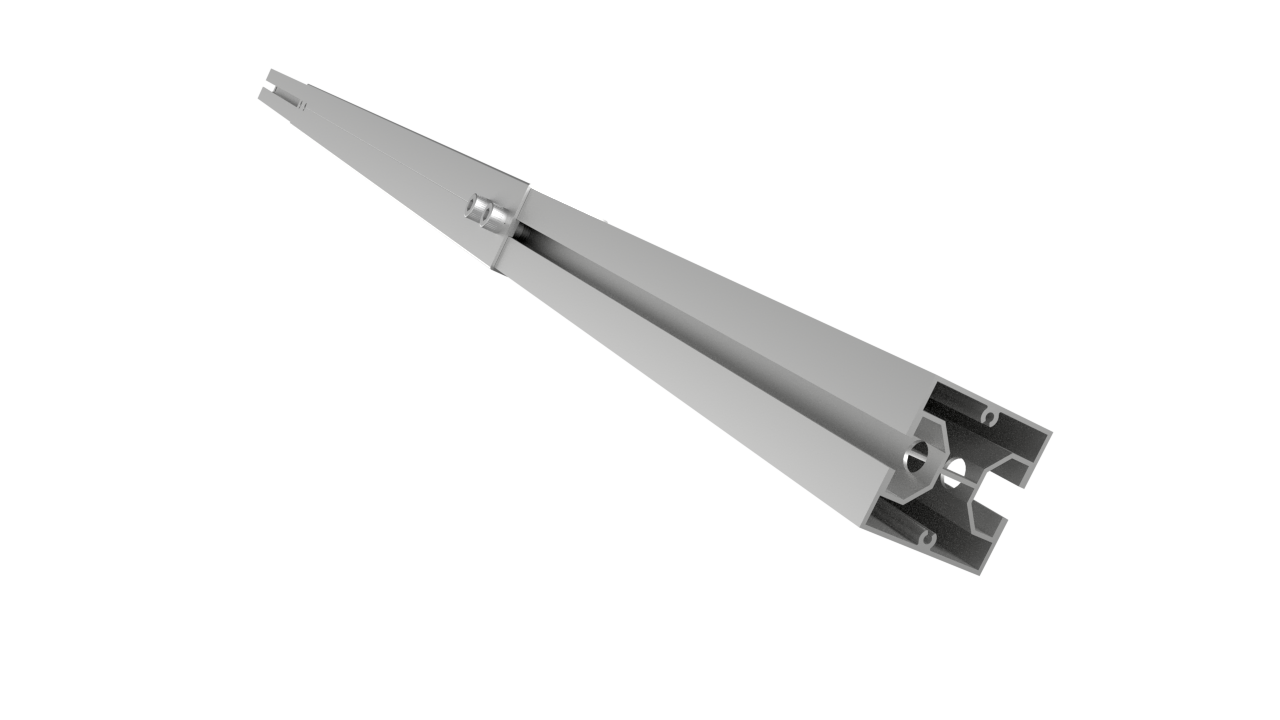

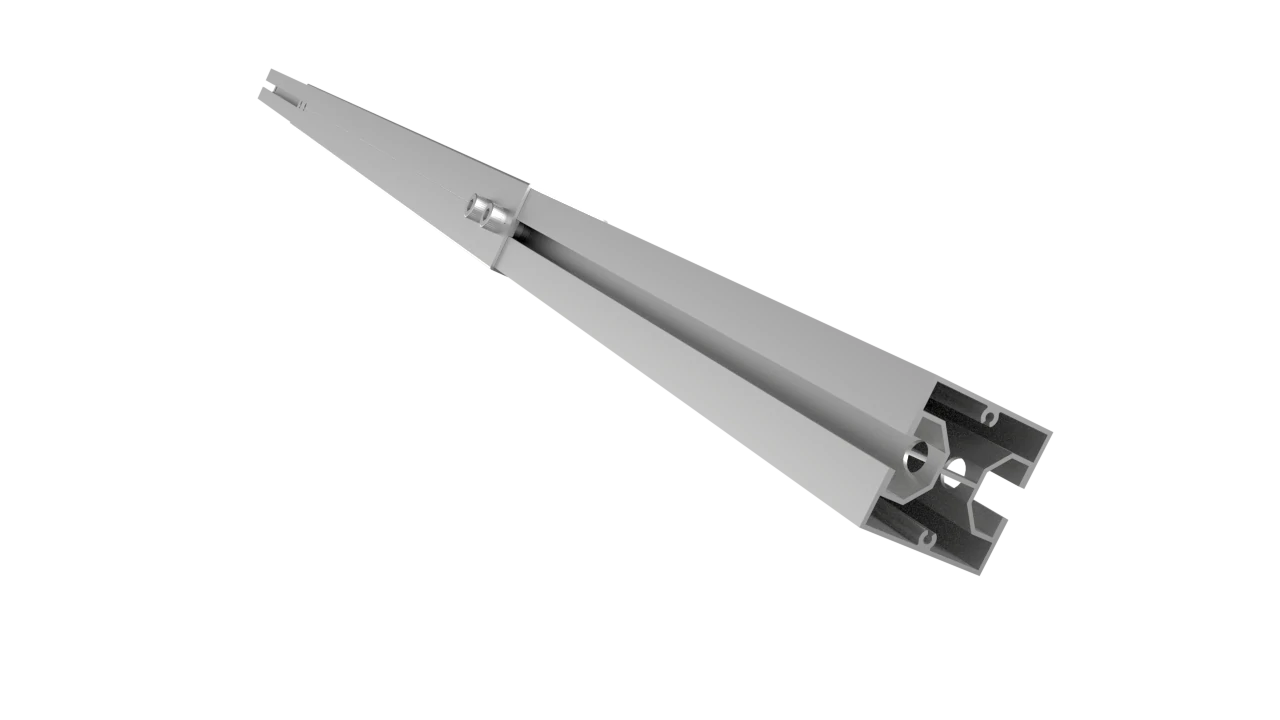

Retractable Connecting Rail
43*43*800-1050mm

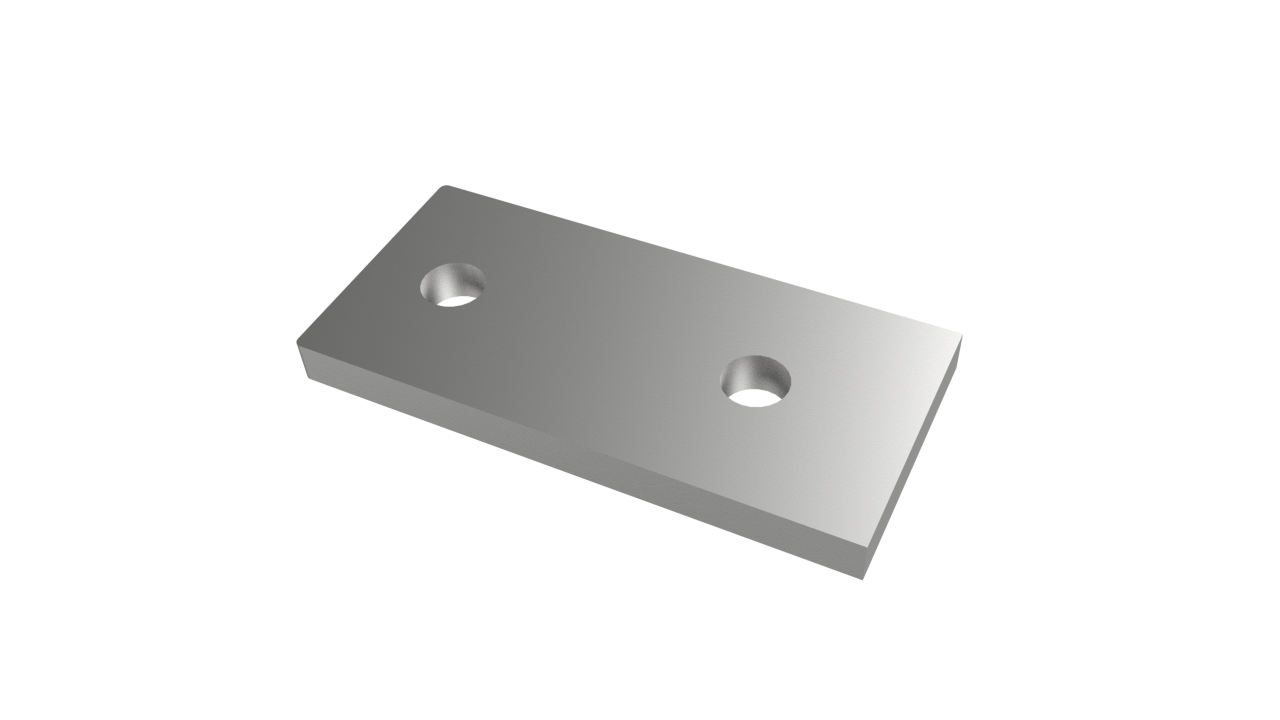

Inverter Fixing Sheet
20*80*6mm

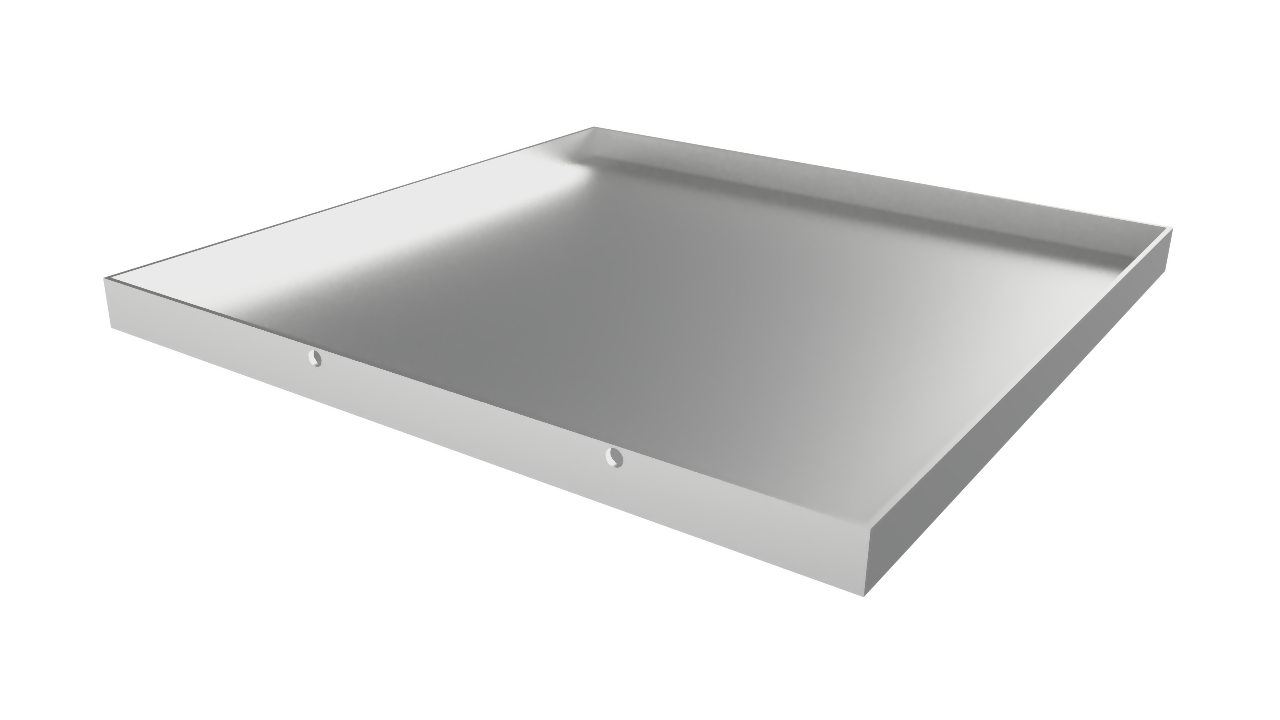

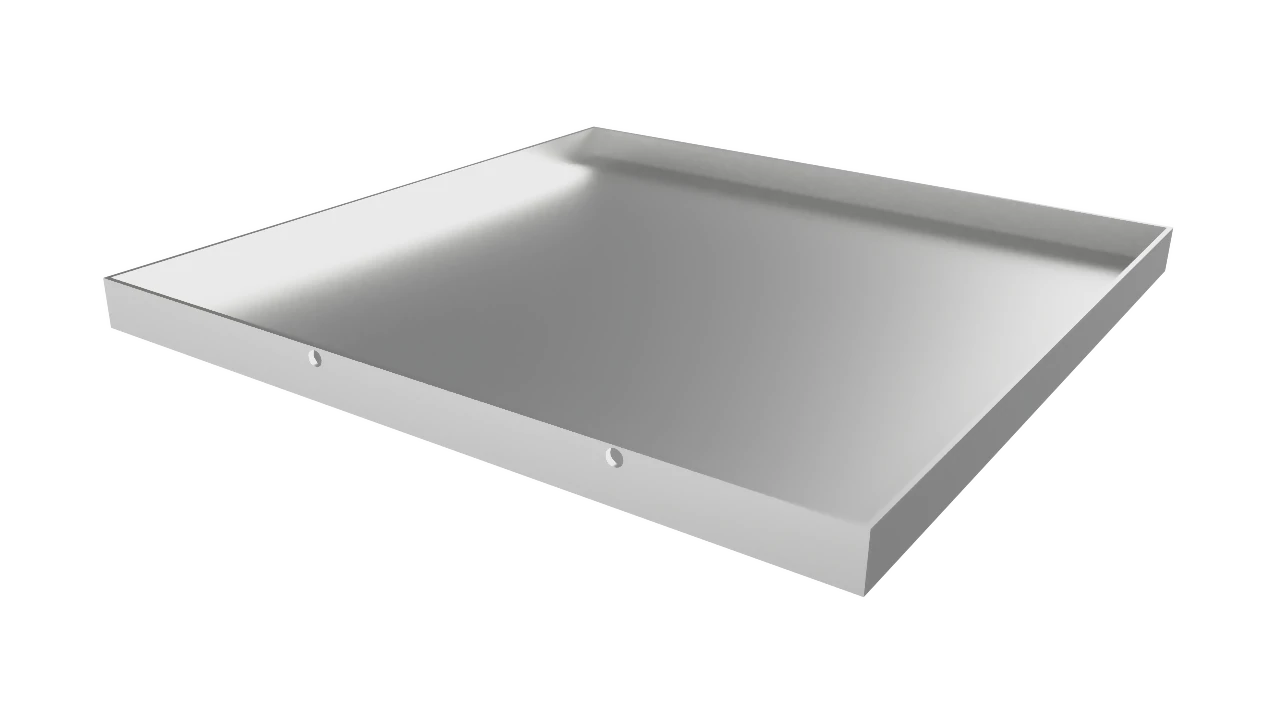

Aluminium Plate
310*310*20mm

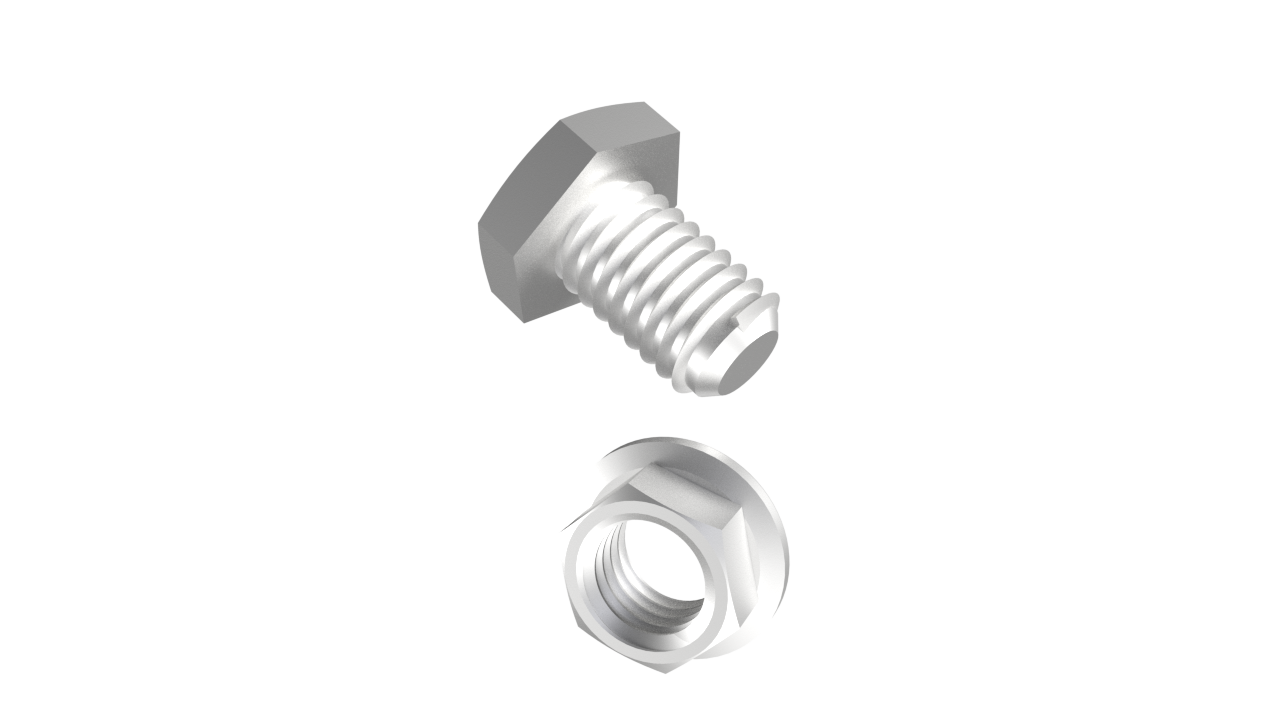

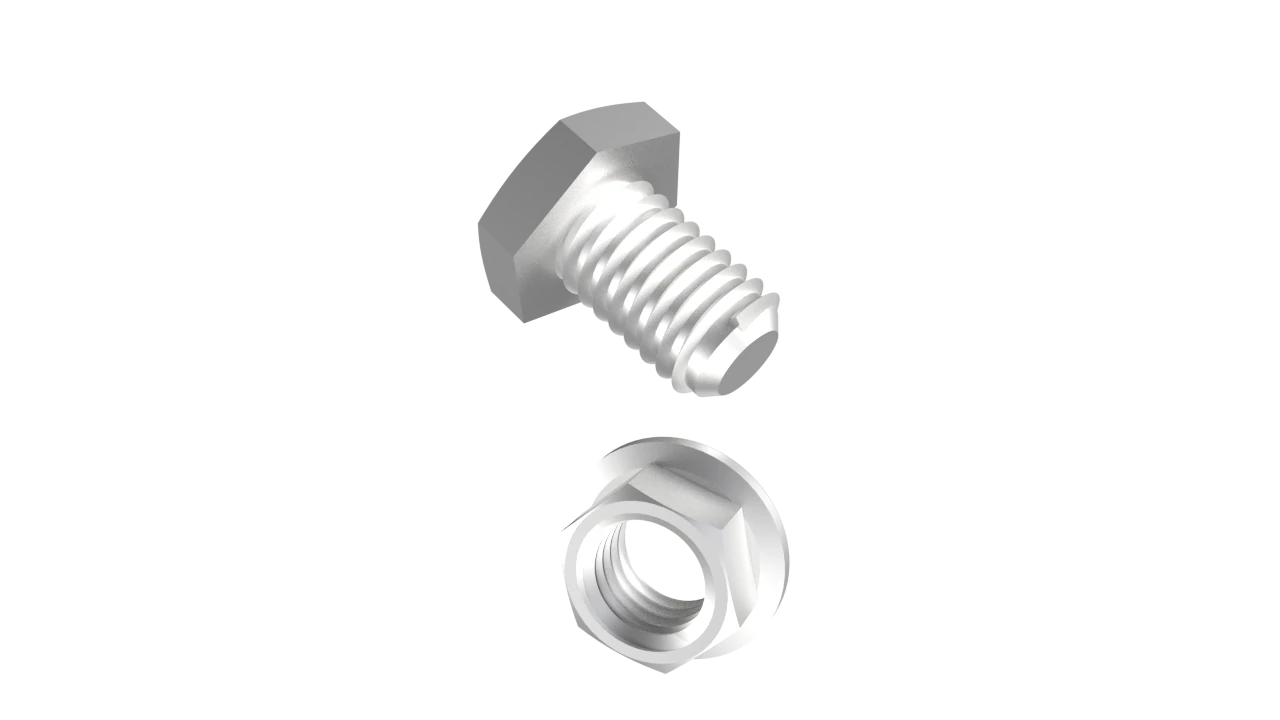

M8*14mm Hex Bolt
with nut

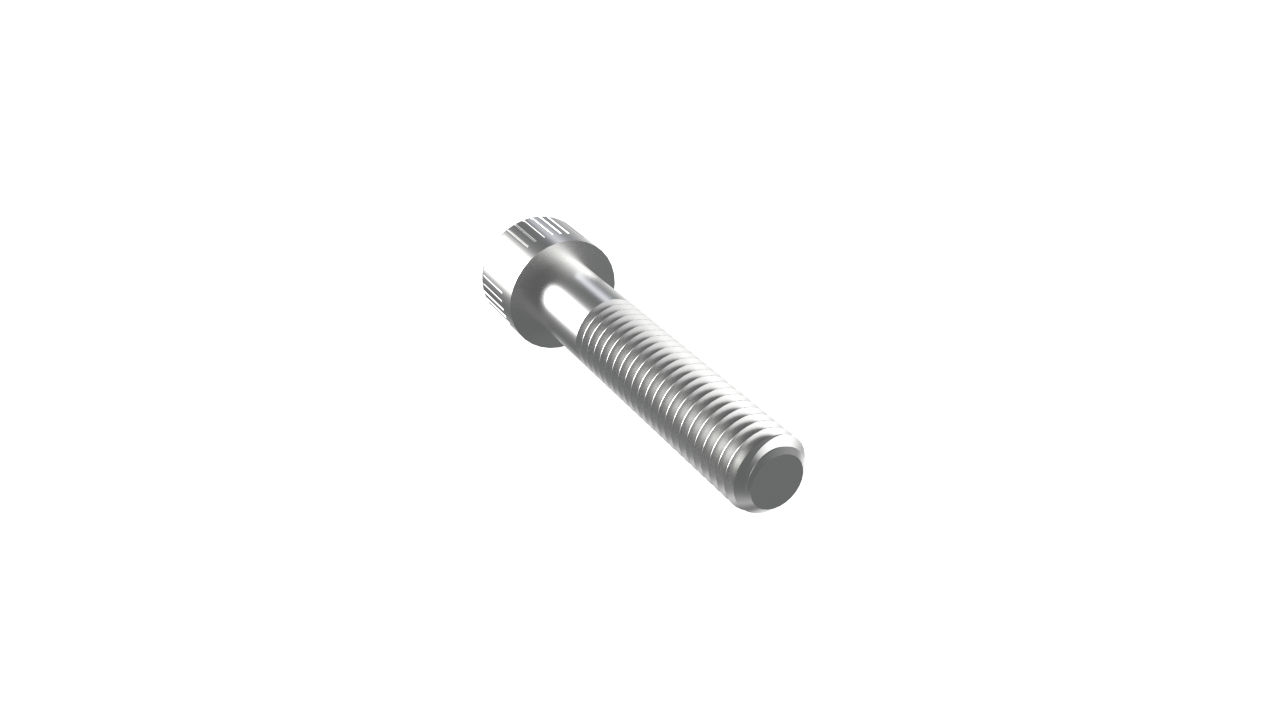

M8*20mm Allen Bolt

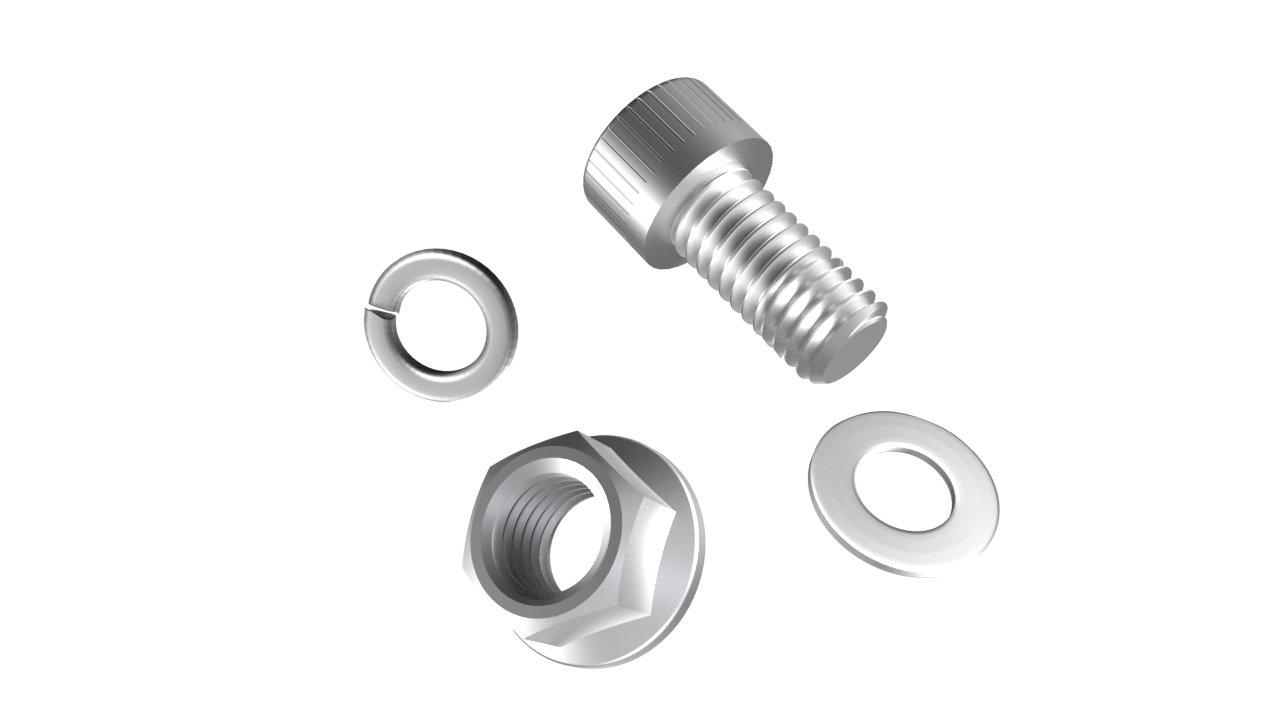

M8*25mm Allen Bolt
with nut,split washer & flat washer

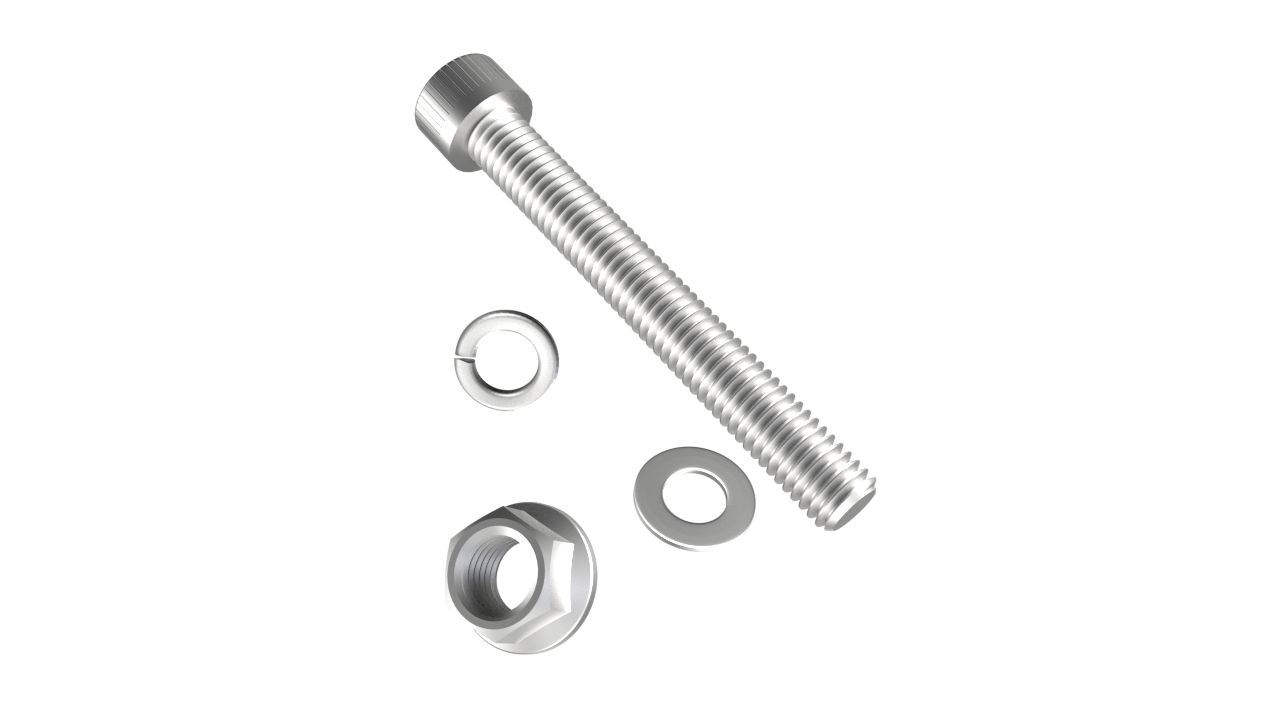

M8*60mm Allen Bolt
with nut, split washer & flat washer
M5*14mm Phillips
Hex Bolt with nut
Allen Key
(for M8 Allen bolt)
Spanner
