Trapezoidal Metal Roof Solar Bracket

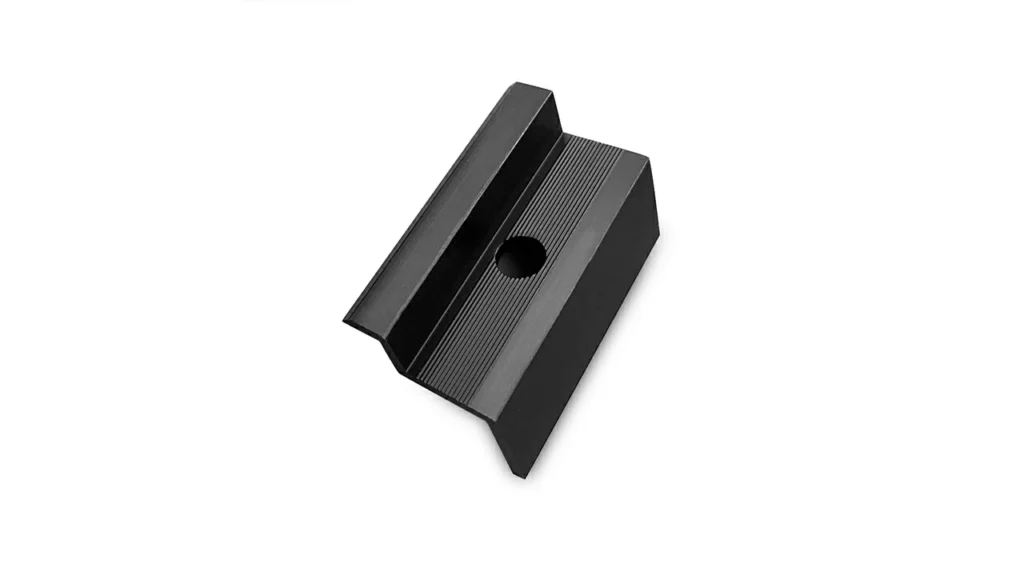

End Clamp 30mm
Secure 30mm thickness of solar panel

End Clamp 35mm
Secure 35mm thickness of solar panel

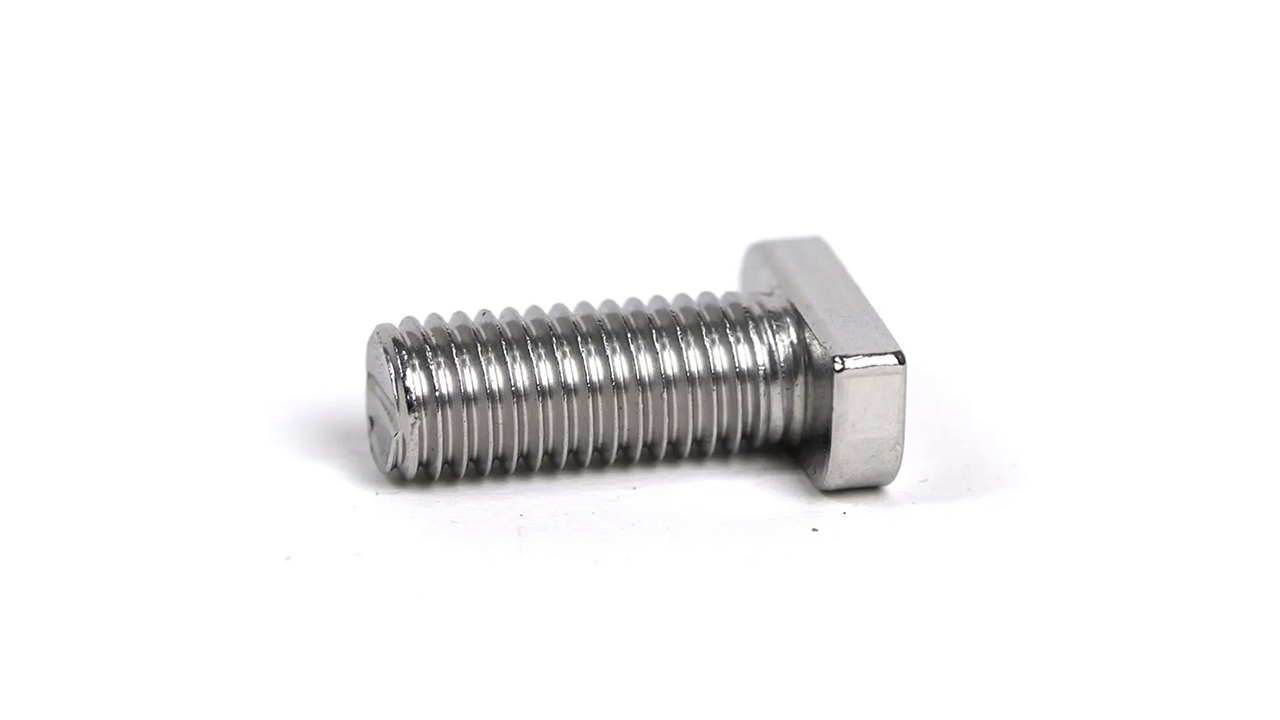

Hammer Bolt
M10 * 25mm To connect mounting rail & stand

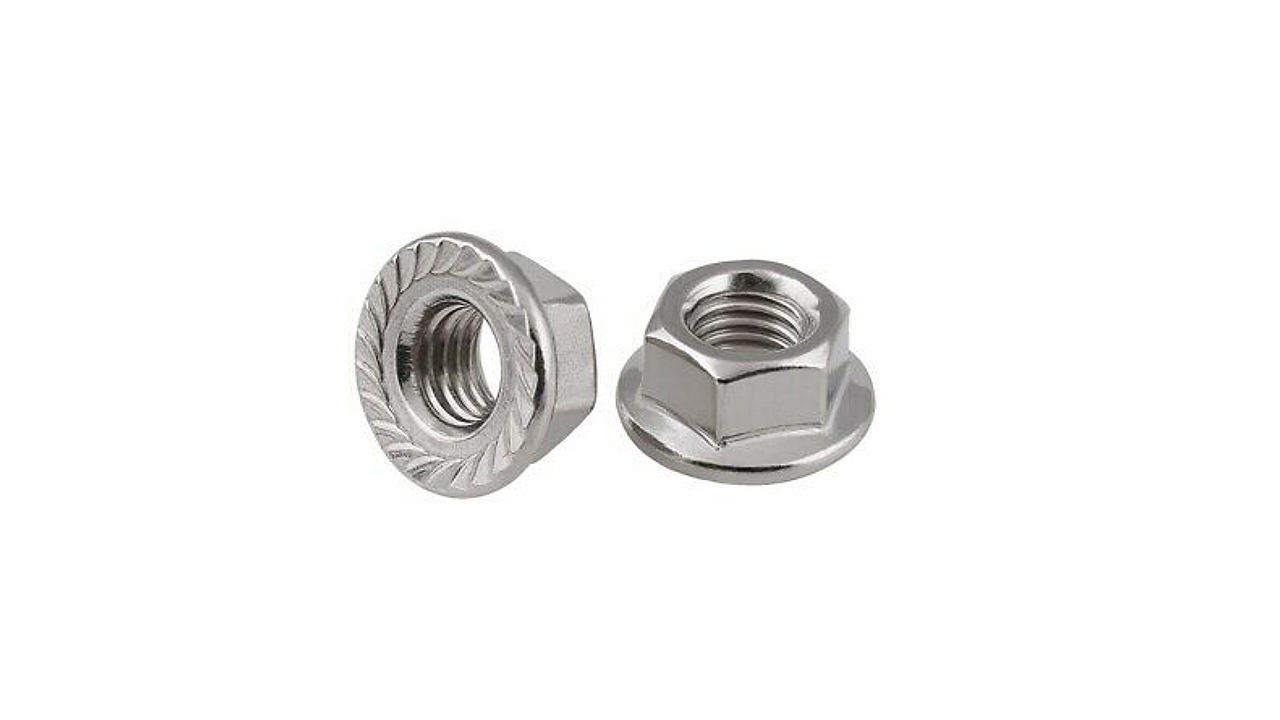

M10 Nut
For M10 bolt

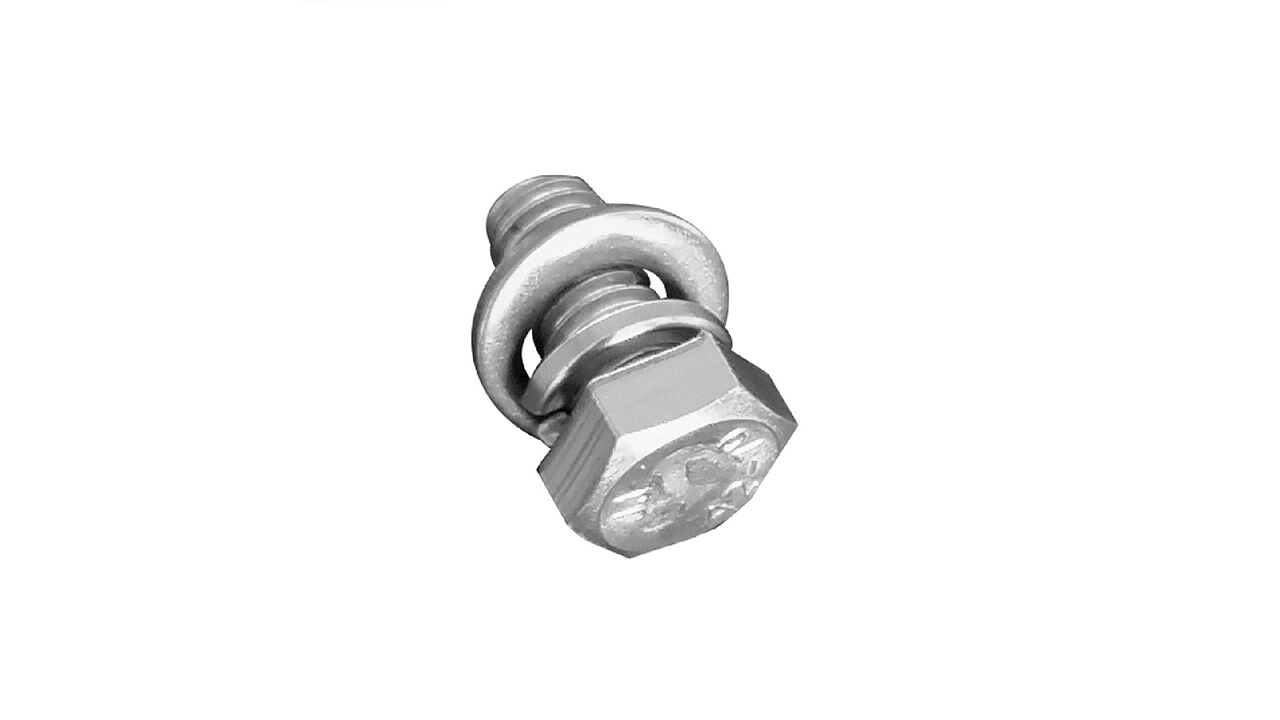

M8 * 16mm Hex Bolt Kit
To connect trapezoidal sheet mounting rail & stand

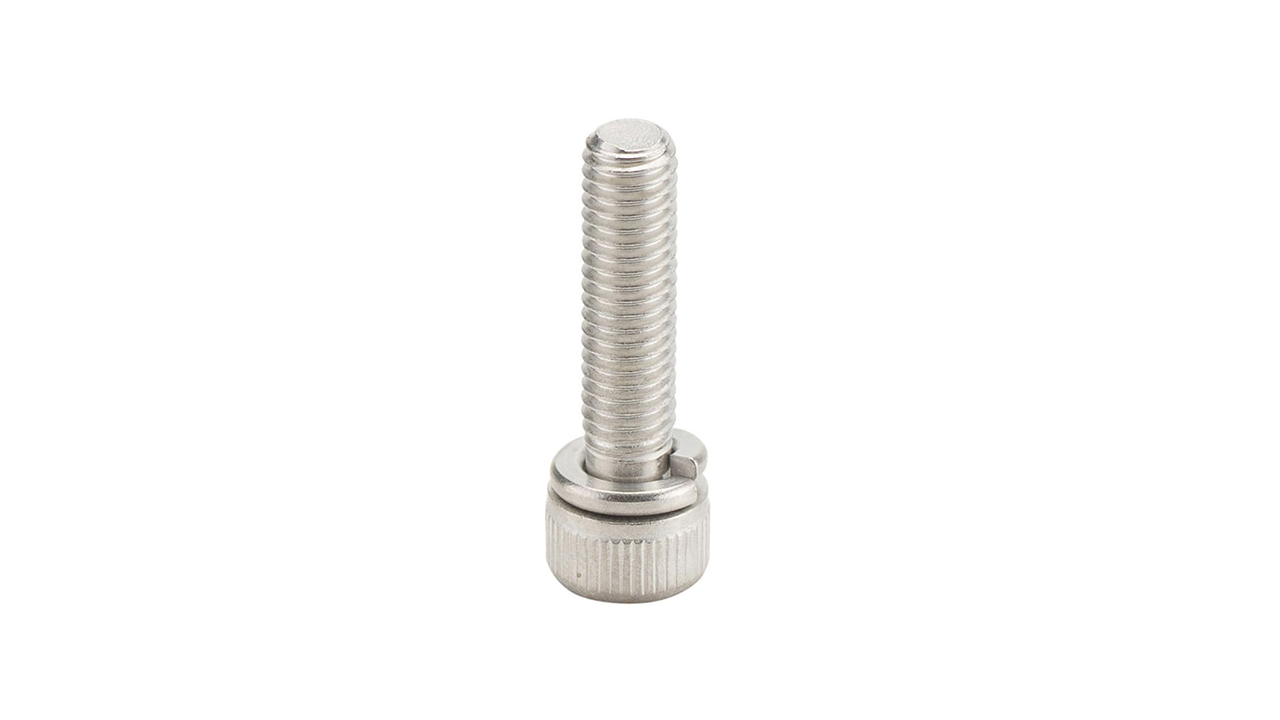

M8 * 45mm Allen Bolt Kit
For middle clamp& 30mm end clamp

M8 * 50mm Allen Bolt Kit
For 35mm end clamp

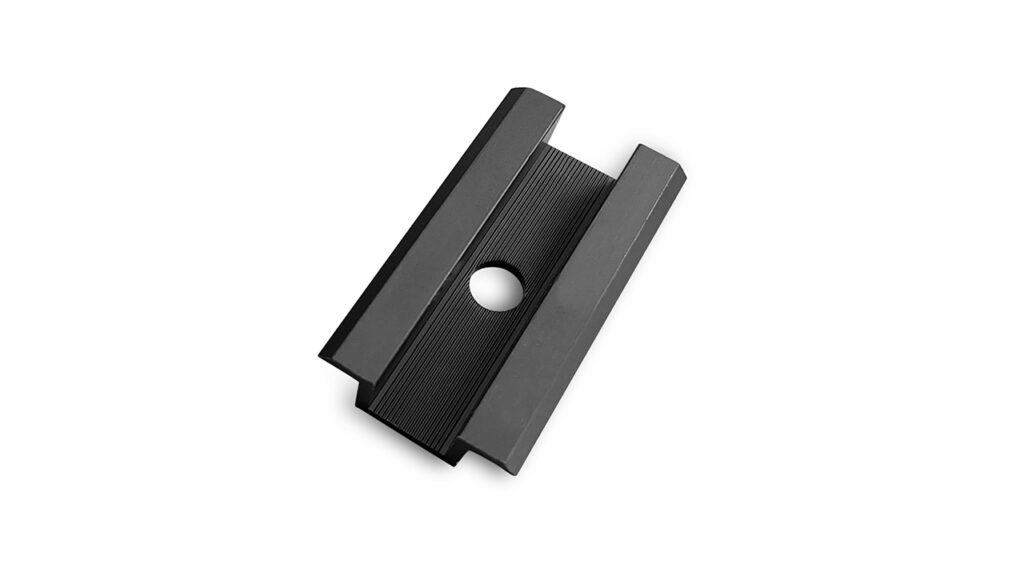

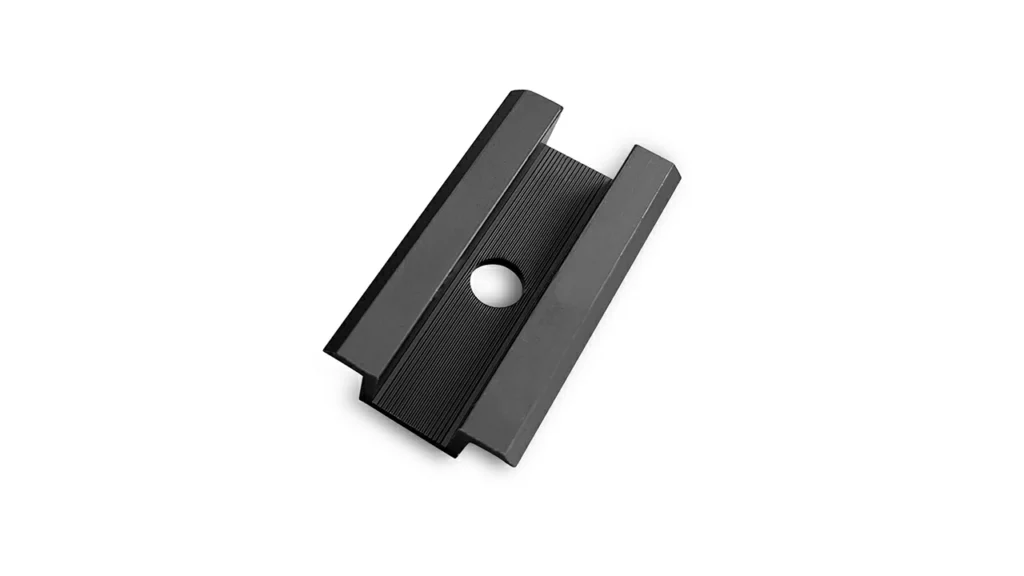

Middle Clamp
Secure 30/35mm solar panel

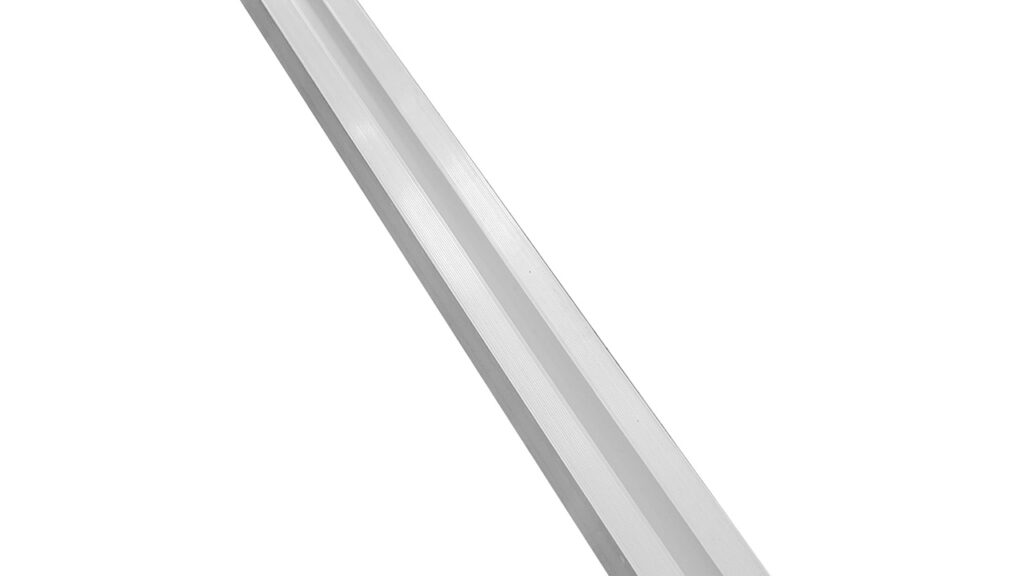

Mounting Rail 40 * 40 mm
L3580 * B40 * H40mm
Support solar panels
Top slot suitable for M8 slot structure
Bottom bracket fits hammer bolts

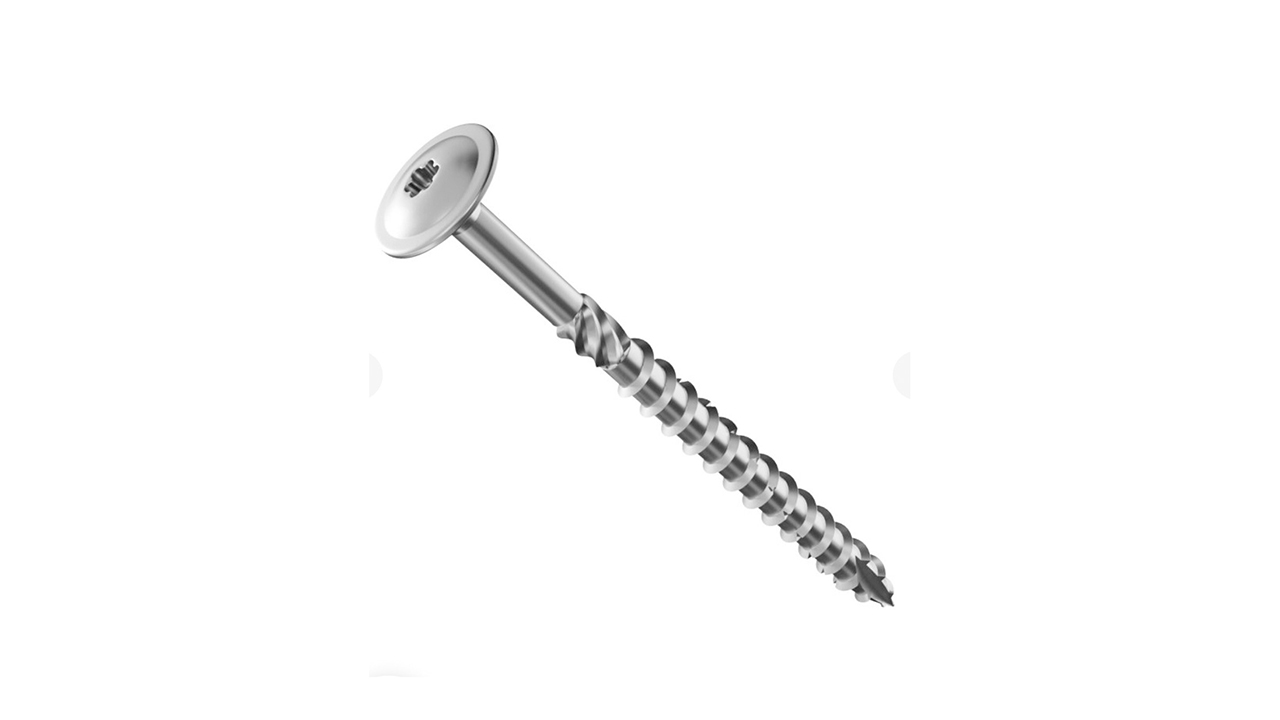

Pan Head Screw
M8 * 100mm Wood screw

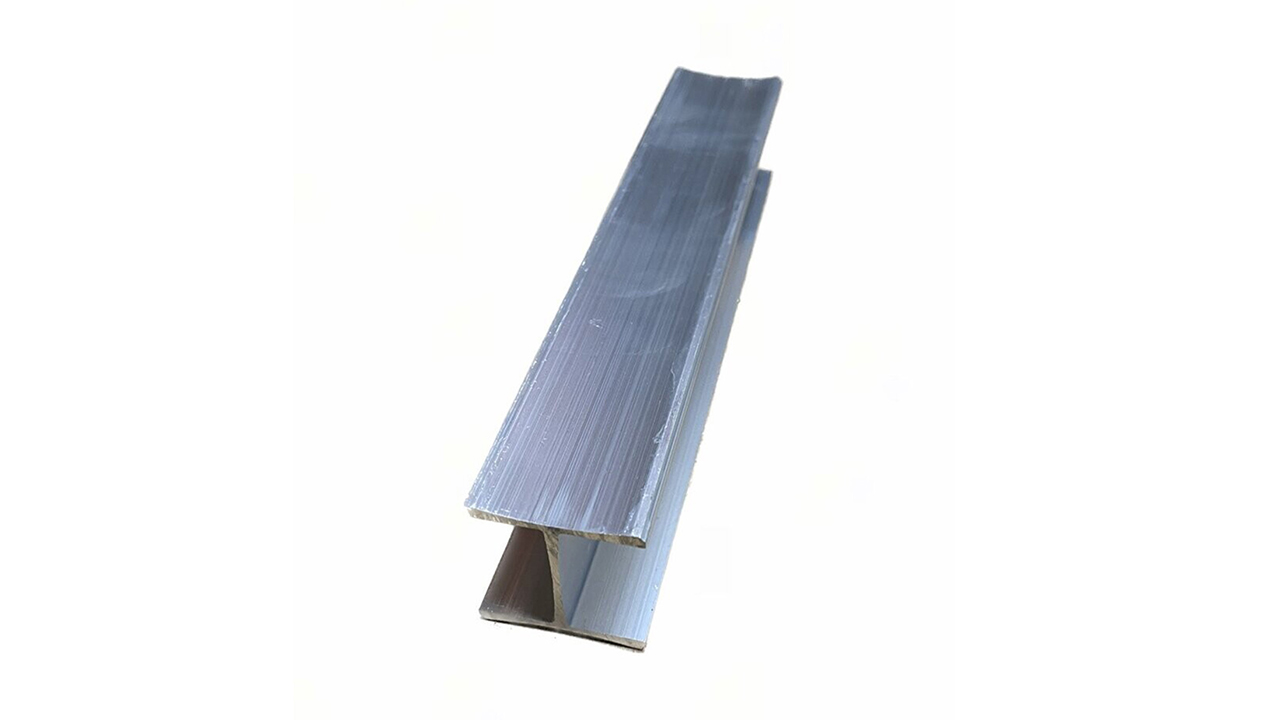

Rail Splice
40 * 40mm
Connecting two mounting rails

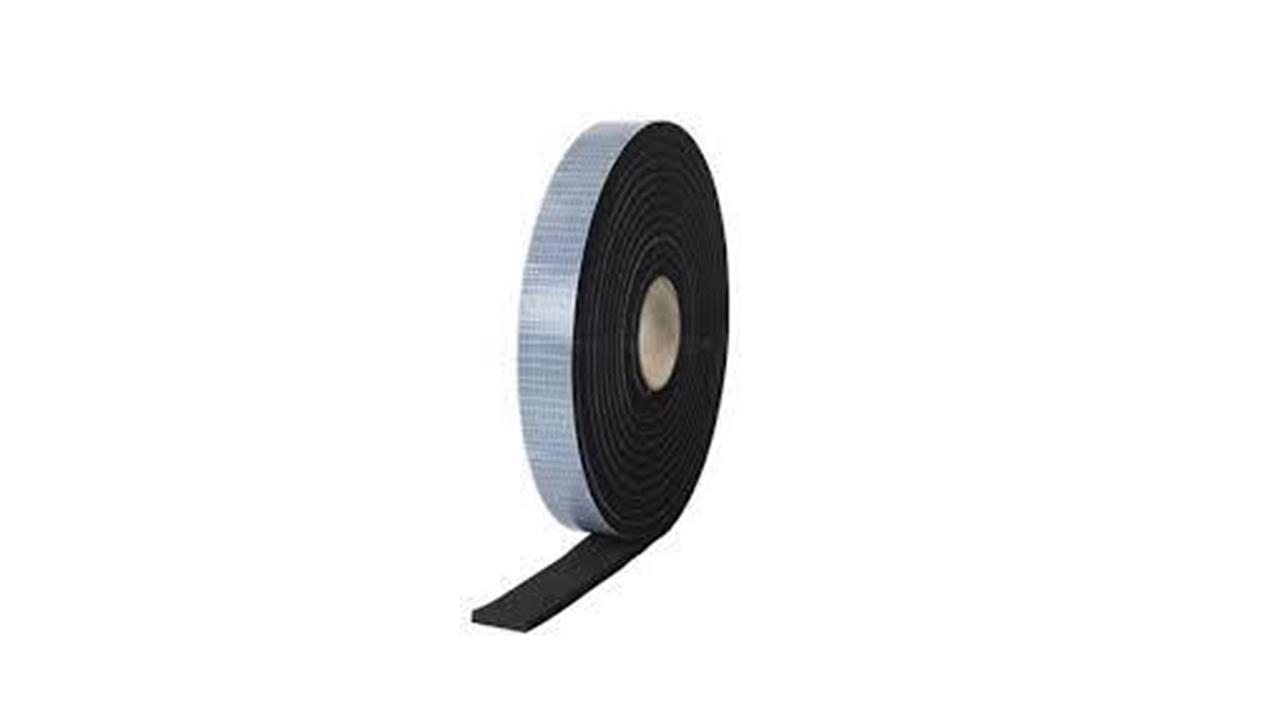

Sealing Tape
L= 30m
Adhered to the bottom of trapezoidal
sheet mounting rail for waterproofing

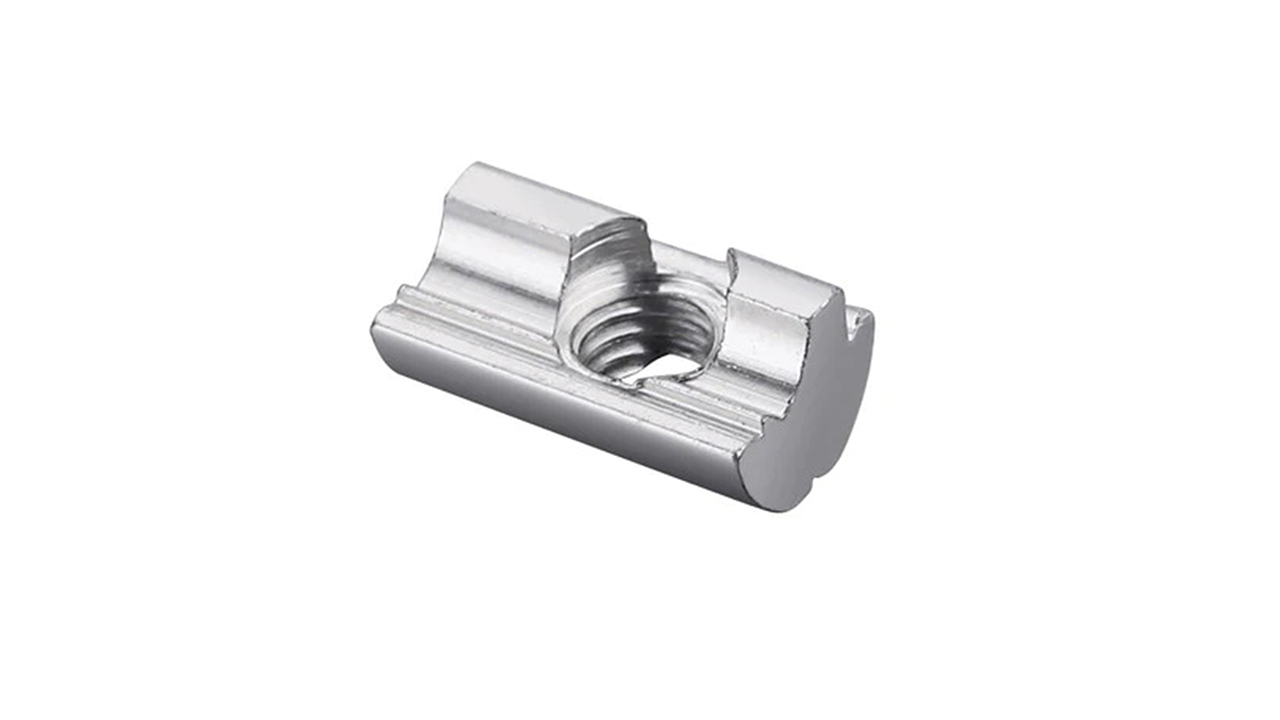

Slot Nut for M8 Bolt
M8
Slide into slot of mounting rail

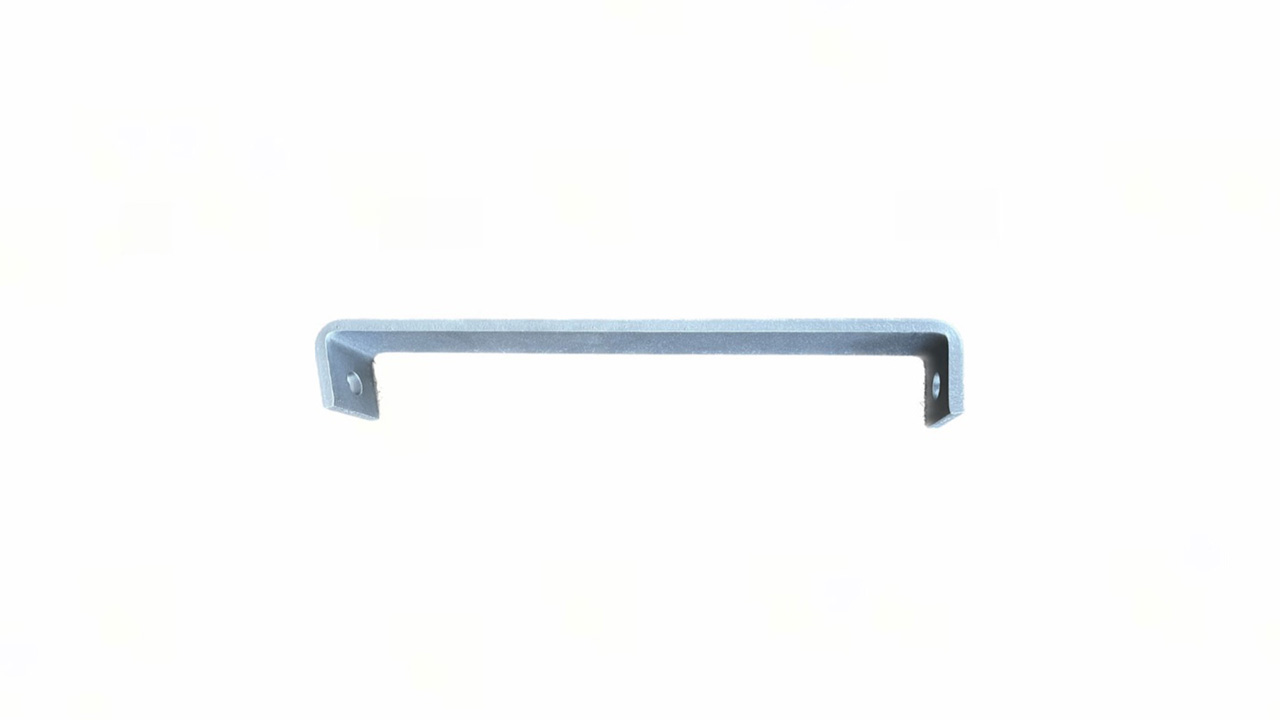

Stand 226mm
L= 226mm
Connect mounting rail and trapezoidal
sheet mounting rail, achieve 15°
inclination of solar panel

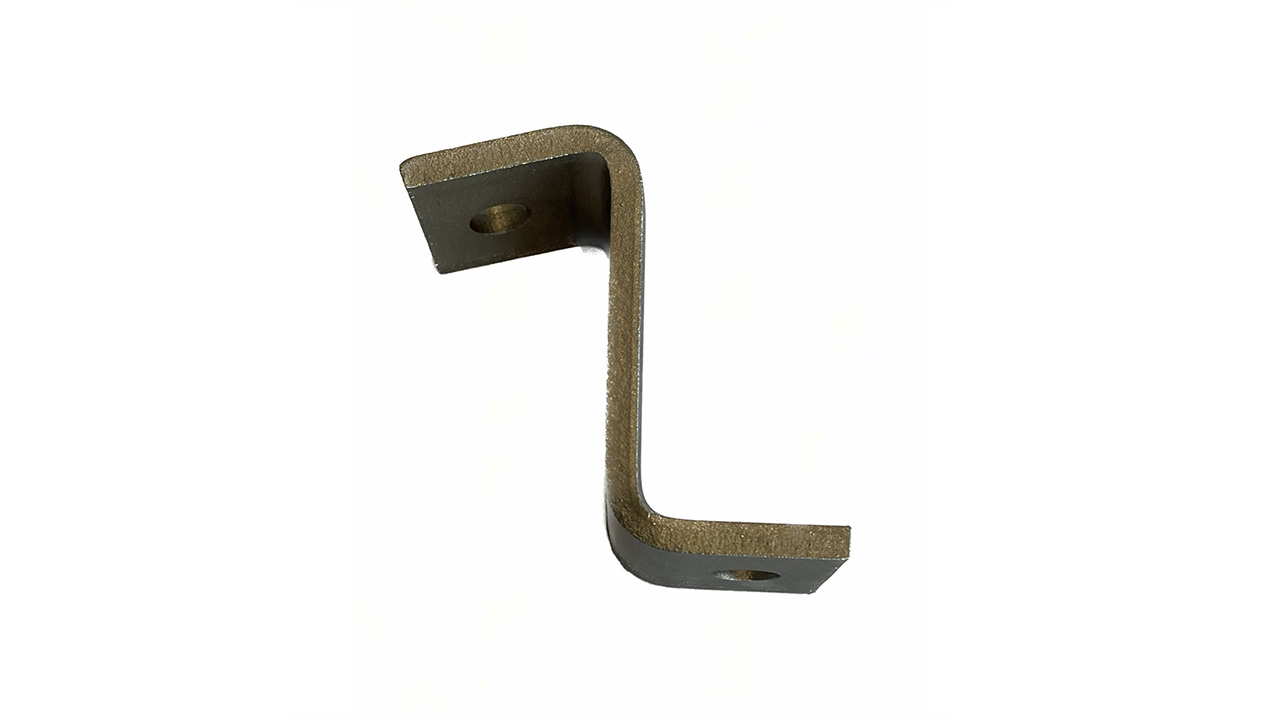

Stand 75mm
L= 75mm
Connect mounting rail and trapezoidal
sheet mounting rail

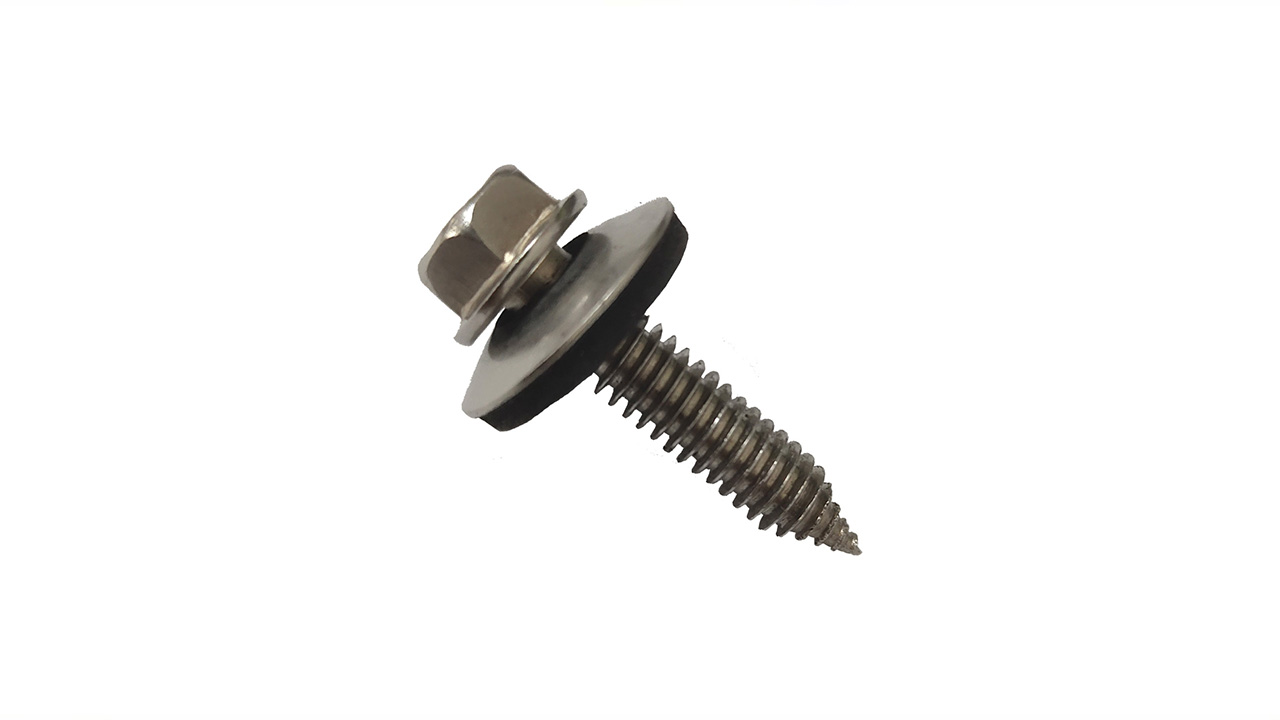

Thin Sheet Metal Screw
M5.5 * 25mm
Fix trapezoidal sheet mounting rail to
trapezoidal sheet

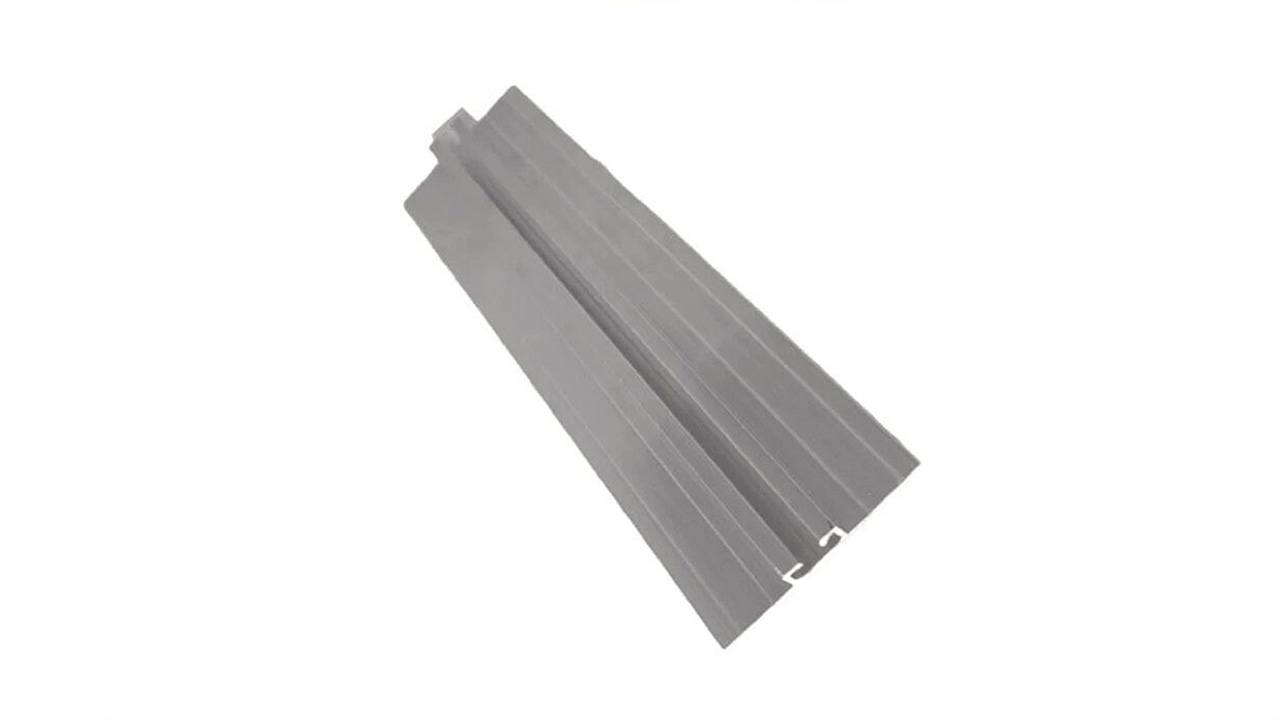

Trapezoidal Sheet Mounting Rail
L= 400mm
Secure the trapezoidal sheet and connect
the standng rails
