Efficient Drainage for Solar Carports

行政 — Thu, 17 Sep 2026 06:59:09 +0000

A well-designed drainage system is the core of the Luxo Double Solar Carport. The multi-stage water drainage prevents standing water on the PV roof surface and protects your photovoltaic modules and aluminium substructure from long-term moisture damage.

How the Drainage System of the Luxo Double Solar Carport Works

Luxo Double Technical Specifications

Roof Pitch	6°
Length	5848 mm
Width	5430 mm
System	Multi-stage Gutter
Material	Aluminium

A sophisticated drainage system is one of the key technical features of any solar carport, as it enables controlled rainwater runoff and guarantees the long service life of the entire structure. The Luxo Double Solar Carport is engineered with a 6° roof pitch. This incline ensures rainwater does not pool on the roof surface and reliably flows towards the drainage outlets. For large roof areas such as this double carport, measuring 5848 mm in length and 5430 mm in width, consistent slope is critical to avoid puddling and associated stress on photovoltaic modules and the supporting substructure.

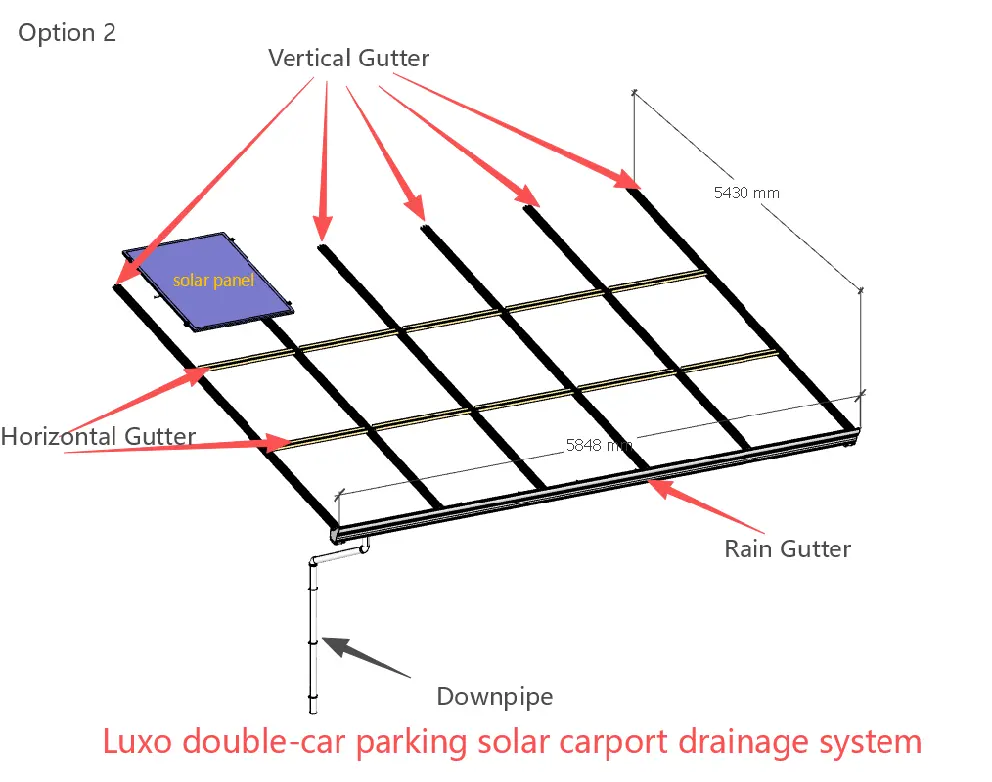

Fig.: Full view of the drainage system on the Luxo Double Solar Carport

The 5 Stages of Water Drainage

1. 6° Roof Pitch

Water reliably flows toward gutters via the fixed slope; no standing water accumulates on PV modules.

2. Vertical Gutter

First collection stage: catches water running off the roof edge and channels it onward.

3. Horizontal Gutter

Collects water from vertical gutters and consolidates the water flow.

4. Rain Gutter

Central collection gutter for the bundled rainwater flow of the whole system.

5. Downpipe

Downspout guides collected water in a controlled path from the roof all the way to ground level.

Stage 1: Roof Surface & 6° Roof Pitch

The drainage process starts on the roof surface of the solar carport. The 6° pitch directs rainwater toward the Vertical Gutter. The Vertical Gutter handles the first stage of drainage: it captures water flowing off the roof surface and routes it in a controlled manner, preventing uncontrolled water spillage along roof edges.

Stages 2 & 3: Vertical Gutter and Horizontal Gutter

In the next step, water transfers from the Vertical Gutter into the Horizontal Gutter. The Horizontal Gutter acts as a collector, receiving and combining water flow from the Vertical Gutter. This horizontal routing merges water in an organised way before it reaches the next stage of the system.

Stage 4: Rain Gutter – Central Collection Gutter

The collected water then flows into the Rain Gutter. This rain gutter forms the central collection point of the full drainage system and fully captures incoming water from the Horizontal Gutter. From here, the water flow is guided downwards toward the discharge point.

Stage 5: Downpipe – Controlled Drainage to Ground Level

The system is completed by the Downpipe. The Downpipe carries rainwater gathered in the Rain Gutter safely from the roof area down to the ground. This method safely diverts water away from the solar carport structure without detours.

Benefits of the Multi-Stage Drainage System

Good to know

The gutters and downpipes of the Luxo Double Solar Carport are made of corrosion-resistant aluminium. All components remain stable and low-maintenance even under permanent moisture exposure.

The interaction of roof pitch, Vertical Gutter, Horizontal Gutter, Rain Gutter and Downpipe creates a continuous drainage path from roof surface to ground on the Luxo Double Solar Carport. This multi-stage design delivers structured, traceable water management, offering a practical solution for rainwater handling of carport-integrated PV systems for both private homeowners and PV installers. Further product and system information is available at Ecosolarcarport.

Practical Tip

Inspect gutters for leaves and debris after heavy rainfall. Clean drainage ensures long-term functionality of your solar carport.

Do you have specific questions about the Luxo Double Solar Carport?

We offer free, no-obligation consultation – covering dimensions, structural engineering and drainage.

Request your no-obligation consultation →

FAQ

1. Why is the Luxo Double roof pitch only 6°?

A 6° pitch is ideal for solar carports: it guarantees reliable drainage while delivering high energy yield from photovoltaic modules. Steeper pitches are often more complex to construct for carport roofs.

2. Is the drainage system high-maintenance?

Aluminium gutters are corrosion-free and low-maintenance. Occasional cleaning of leaves and debris after autumn leaf fall is recommended.

3. Can the system cope with heavy rainfall?

Yes, the multi-stage gutter system is designed for heavy rain events. Its sizing matched to the roof surface prevents overflow at roof edges.

4. What material are the gutters and downpipe made from?

All drainage components are manufactured from powder-coated aluminium, matching the rest of the Luxo Double Solar Carport substructure.

If you have any questions, please feel free.

The form can be filled in the actual website url.

Efficient Drainage for Solar Carports最先出现在ecosolarcarport。

What do you look for when choosing a solar carport?

行政 — Mon, 20 Jul 2026 09:23:19 +0000

Electricity prices in Germany have been among the highest in Europe for years, and feed‑in tariffs under the EEG keep falling steadily. For private homeowners, it is becoming increasingly attractive to consume self‑produced solar power directly on‑site, rather than feeding it into the grid at low rates. This is exactly where the solar carport comes into play: it reliably protects vehicles against weather, hail and UV radiation while generating solar power on the same surface for self‑consumption – a prime example of dual‑use of property space.

Whether building a new solar carport or retrofitting an existing carport with a solar roof: size, structural engineering, foundations, module selection and grid connection together determine the system’s durability and profitability. Ecosolarcarport offers a well‑engineered aluminium modular system for this purpose, ranging from single‑parking‑space solutions to fully custom‑made builds. Below we guide you step‑by‑step through all key decision‑making points.

Step 1: Choose the right solar carport variant

Every planning process starts with questions about size and existing site conditions. Ecosolarcarport offers four main variants:

Single‑parking‑space solar carport

Compact solution for one vehicle, small footprint and fast installation – the classic entry‑level option for single‑family homes.

Double‑parking‑space solar carport

Space for two vehicles and significantly larger module area – higher energy yield for household self‑consumption.

Fully custom‑sized build

Planned according to plot layout, number of vehicles or special spatial constraints – fully tailored to your property.

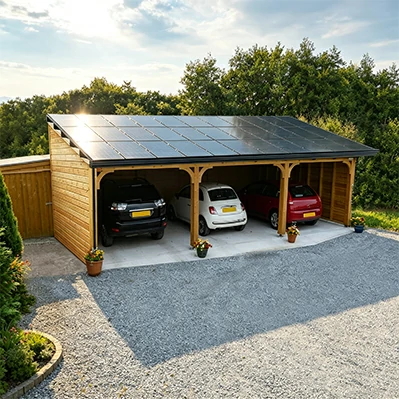

Retrofitting an existing carport with solar roof

An existing carport can be subsequently equipped with solar modules – often the most cost‑effective solution for existing properties.

Step 2: Legal framework & building permit

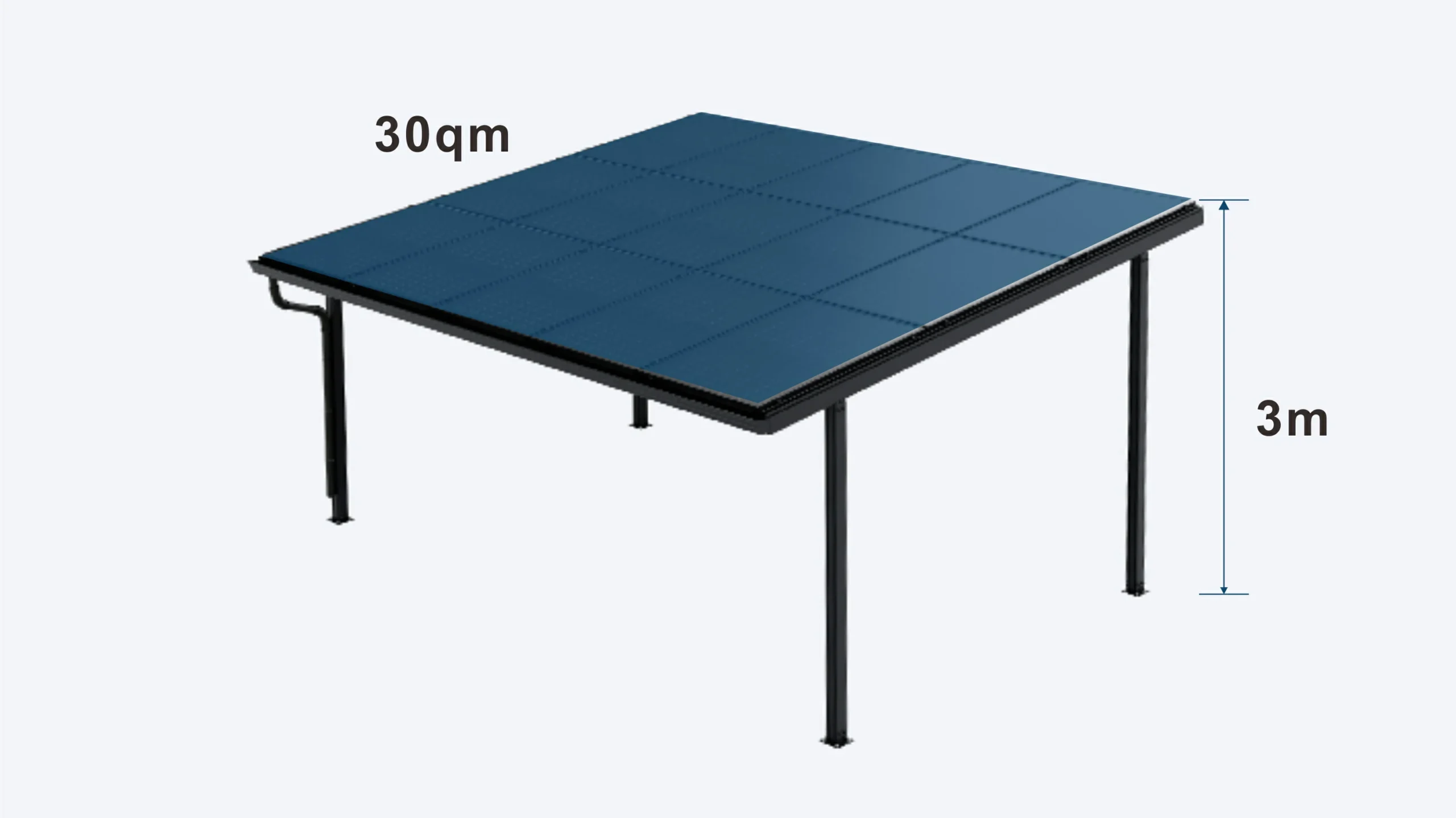

Fig.: Legal framework and building permit for solar carports

Before planning your solar carport, you should check local building‑law requirements:

Legal note

If the local development plan permits it, the solar carport covers a maximum of 30 m² and wall height does not exceed 3 metres, a building permit is generally not required in most regions.

Important: Regulations differ between federal states. We recommend checking the local rules for your region.

Step 3: Cost advantages for foundation construction

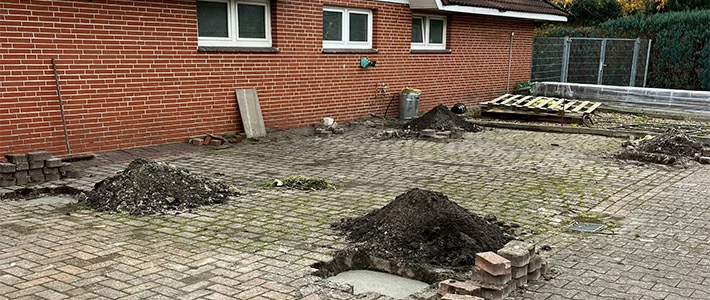

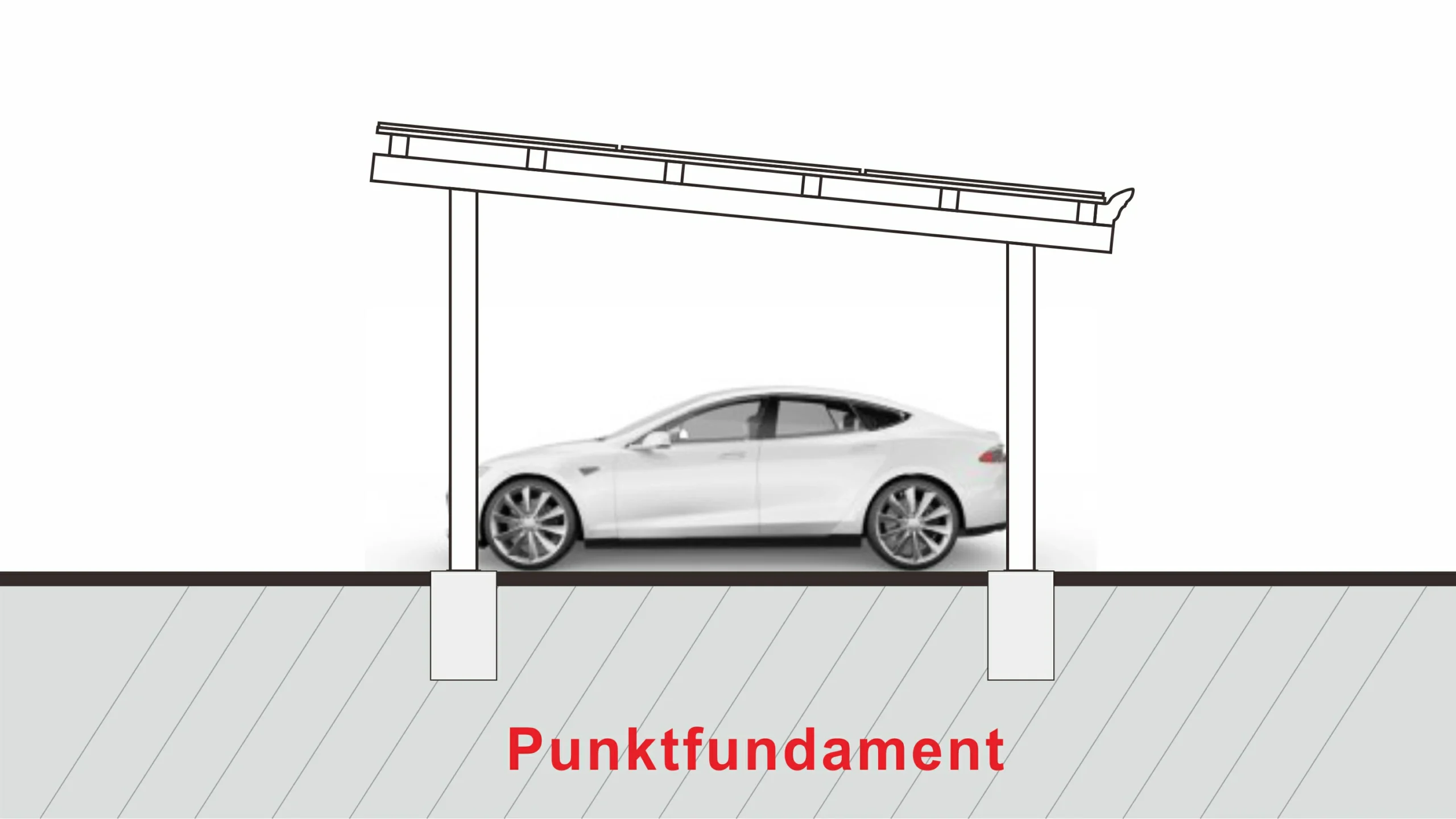

Fig.: Point foundations for solar carport

Our solar carports use point foundations at the four corners as standard. This is the simplest and most affordable solution for private households; foundations can even be laid by yourself.

Slab foundations or strip foundations are more suitable for commercial projects, yet they involve far more work and higher costs.

Step 4: Which solar modules are suitable for carport solar installations?

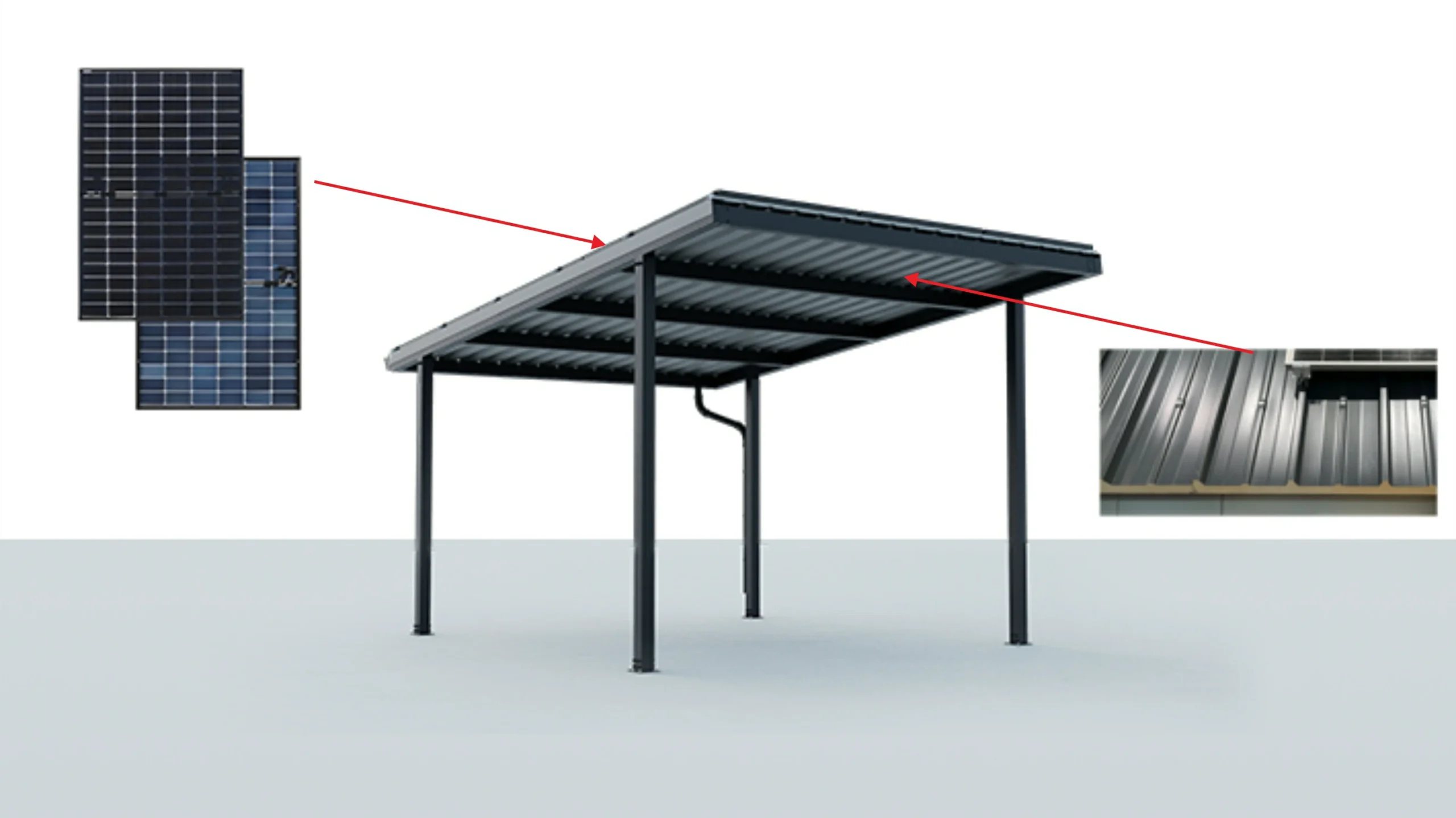

Fig.: Solar modules fitted to solar carport roof

When the entire carport roof surface is covered with solar panels, double‑glass modules are recommended. These also capture diffuse light hitting the rear side and boost overall energy yield.

1Certified double‑glass solar modules

2Coloured metal roof sheets

Step 5: Direct feed‑in into household grid with solar mounting system

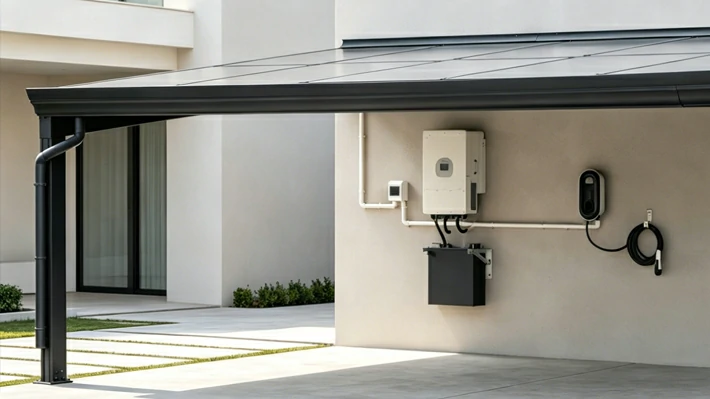

Fig.: Household grid feed‑in for solar carport

Ideally, power generated by the solar carport is fed directly into your domestic power grid via an inverter. Optionally, a battery storage system can be added for energy buffering.

A double‑space solar carport can deliver up to 7 kW of power. This energy covers household consumption, and excess power charges electric vehicles via a wallbox.

up to 7 kW

Output for double‑parking‑space unit

1 roof

Parking + power generation combined

Wallbox‑ready

Surplus power for EV charging

From selecting the right parking‑space size, through legal requirements, foundations, module choice and grid connection: by following these five steps you can plan your solar carport in a legally compliant and economically sensible way. Further product details and configurations are available at Ecosolarcarport.

Frequently asked questions

Key questions about dimensions, permits, foundations, module selection and grid connection for solar carports and solar‑roof carports at a glance.

1. What maximum size can a solar carport be without a building permit?

In most federal states, no building permit is required provided the local development plan allows the installation, the footprint of the solar carport does not exceed 30 m² and wall height stays below 3 metres.

Exact rules vary from one federal state to another. Before starting construction, always verify local regulations. This applies both to new builds and retrofitting an existing carport with solar panels.

2. Which foundation type is most cost‑effective for private solar carports?

For private households, four‑corner point foundations represent the simplest and most affordable option. They can be laid with moderate effort and in many cases installed by the property owner.

Slab or strip foundations offer higher load‑bearing capacity but require substantially more material and higher costs, making them better suited for commercial solar carport projects.

3. Do solar modules on a solar carport roof need special certification?

Yes. When solar panels form the complete roof surface, they count as overhead glazing according to DIBt and DIN 18008. In this scenario dedicated roof‑use certification is mandatory. Double‑glass modules are recommended, as they harvest rear‑side diffuse light and increase energy output.

A safety net fitted underneath the modules offers an alternative solution. This allows installing modules without roof certification, for instance combined with coloured‑metal roof sheets.

4. How is power generated by the solar carport used inside the house?

Using a suitable solar mounting system and inverter, generated power is ideally fed directly into your domestic electrical grid. A battery storage unit may additionally be connected to raise your self‑consumption rate.

A double‑parking‑space solar carport can reach up to 7 kW output, covering most household‑energy demand. Surplus electricity can directly charge electric vehicles via a wallbox.

If you have any questions, please feel free.

The form can be filled in the actual website url.

What do you look for when choosing a solar carport?最先出现在ecosolarcarport。

When Is a Solar Battery Storage System Actually Worth It?

行政 — Sat, 11 Jul 2026 07:27:56 +0000

When Is a Solar Battery Storage System Actually Worth It? | Ecosolarcarport Guide

At midday, your solar panels often generate far more power than your household consumes – excess energy is fed back to the grid for just a few cents per kWh. Hours later, when your family returns home, the oven and washing machine run, yet your roof produces no solar power. Every kilowatt-hour must then be purchased from the grid at full retail price. This gap between solar generation and household demand is why more homeowners install battery storage. The key question is not whether storage makes technical sense – but at what point it delivers a positive financial return. Below we calculate the economics transparently using up-to-date 2026 market data.

Why Battery Storage Represents a Profitable Investment

Without a battery, most households only self-consume roughly 25 to 35 percent of their self-generated solar power – the rest is exported to the grid. With a correctly sized battery system, self-consumption rises to 60 to 80 percent. The logic is straightforward: every kilowatt-hour you use on-site avoids buying grid power at approximately 37 cents/kWh (average residential electricity price in Germany, 2026 BDEW analysis). That same kilowatt-hour exported only earns 7.78 cents/kWh (feed-in tariff for systems up to 10 kWp, valid February–July 2026). The ~29 cent per kWh difference is the core driver behind every storage system’s profitability.

In short: Battery storage does not earn money via feed-in tariffs; it saves you money by avoiding expensive grid electricity purchases. The wider the gap between retail power prices and export rates, the faster your system will pay itself off.

Practical Calculation Example: What Value Does a Battery Storage System Deliver?

Take a typical four-person household with 4,500 kWh annual consumption and an 8 kWp rooftop PV system (~950 kWh per kWp per year, generating roughly 7,600 kWh annually):

Without Battery Storage

Self-consumption rate ~30% → 2,280 kWh used directly = €843.60 saved grid costs
70% exported → 5,320 kWh × 7.78 ct = €413.90 feed-in revenue
Total annual financial benefit: €1,257.50

With an 8 kWh Battery Storage System

Self-consumption jumps to ~62% (includes ~10% charge/discharge efficiency losses) → 4,674 kWh used directly or via battery = €1,729.38 saved grid costs
Remaining 38% exported → 2,926 kWh × 7.78 ct = €227.60 feed-in revenue
Total annual financial benefit: €1,956.98

Additional Annual Benefit From the Battery System

€1,956.98 − €1,257.50 = €699.48 per year, minus ~€60 annual running costs (insurance, remote monitoring) → ~€640 net annual saving

For a typical upfront investment of roughly €4,800 for an 8 kWh storage unit (battery price €450/kWh plus ~€1,200 installation fees, 2026 market levels), this results in a payback period of approximately 7.5 years. LFP battery cells have a service life of 15–20 years (6,000–10,000 charge cycles), leaving 8 to 12 years of pure savings after breaking even.

Calculate Your Own Payback With This Simple Formula

You don’t need to recalculate every quote manually – use this simplified formula to quickly evaluate any offer:

Payback Years =
Total Battery Investment (€)
÷ [ (Extra Usable kWh Per Year × (Retail Electricity Price − Feed-In Tariff))
− Annual Running Costs (€) ]

Rule of thumb: If your calculated payback time sits under half the battery’s technical service life (roughly 8–10 years), the investment is clearly worthwhile.

Factors That Impact Profitability & Payback Timeline

1. Consumption Habits & Daily Load Profile

Households with high daytime power use (home offices, heat pumps, EV charging) already make good use of solar power without storage. Batteries deliver the strongest financial gain for homes with morning and evening demand peaks – standard for working families.

2. Correct Storage Sizing

The biggest economic gain comes from upgrading from no storage to a 5–10 kWh system. Every extra kWh of capacity beyond this delivers diminishing returns, as batteries rarely fully recharge on low-sunlight winter days. General guideline: 1 to 1.5 kWh of storage per 1 kWp of installed solar capacity.

3. Charge & Discharge Efficiency Losses

Modern LFP lithium batteries achieve a round-trip efficiency of roughly 90%. This means out of 10 kWh stored, only around 9 kWh are available for household use. Any credible payback calculation must account for this ~10% energy loss – suppliers quoting 100% efficiency skew results artificially.

4. Ongoing Maintenance & Operating Expenses

Budget a realistic €50–80 per year for insurance, remote monitoring and occasional servicing. Batteries require replacement after 15–20 years. Storage prices are projected to fall a further 5–15% over the next 12–18 months, meaning future replacements will cost less than your initial purchase.

5. Electricity Price & Subsidy Trends

By law, feed-in tariffs drop 1% every six months under §49 of the German EEG 2023 – falling to 7.71 ct/kWh starting August 2026. Residential retail electricity prices remain high at 32–38 ct/kWh. The widening gap between falling export rates and expensive grid power makes self-consumption – and battery storage – more attractive each year.

Who Should Install Battery Storage – And Who Should Not?

Battery storage is not a one-size-fits-all solution. Use this honest comparison to assess your personal situation:

✓ Ideal Candidates

Power demand concentrated in mornings and evenings (families, working households)
Electric vehicle or heat pump already fitted or planned
Annual energy consumption of at least ~3,500 kWh
South / east-west oriented roof with strong sunlight, minimal shading
Planning to live in the property for 10+ years
Existing PV system nearing the end of its feed-in tariff term

✗ Poor Fit

Very low annual power usage (below ~2,500 kWh)
All consumption concentrated entirely during daylight hours (e.g. full-time home office with no evening demand)
Heavily shaded roof leading to low solar yield
Planning to move or sell the property within 3–5 years
Tight budget where the PV system alone already hits financial limits

Real-World Case Study: Aluminum Solar Carport With Battery Storage & EV Charger by Ecosolarcarport

One of Ecosolarcarport’s most frequent customer enquiries combines an aluminum solar carport, battery storage and home EV charging station – without taking up valuable rooftop space on your house. Below is the economic breakdown for a typical setup:

Carport solar capacity: 6 kWp → ~5,700 kWh annual solar generation
Household power use: 4,500 kWh + EV charging demand of ~3,000 kWh per year (~15,000 km driven)
8 kWh battery + intelligent load management (prioritizes EV charging with solar surplus)
Achievable self-consumption rate: ~75%, thanks to the large, controllable EV load
On-site self-consumed power: 4,275 kWh × 37 ct = €1,581.75 grid cost savings
Surplus exported to grid: 1,425 kWh × 7.78 ct = €110.87
Total annual financial benefit: ~€1,692.60

Total upfront investment (carport frame, 6 kWp PV panels, 8 kWh storage, EV charger, full installation): roughly €15,000–16,000. Payback period: ~9 years. This calculation does not include additional savings from eliminating petrol costs or public EV charging fees.

The core advantage of the carport concept: your home roof remains free for other uses or can accommodate a separate second PV array. At the same time, the carport shelters your vehicle, patio or parking space from harsh weather.

Three Common Myths About Solar Battery Storage

“A battery makes me fully off-grid.” In practice, retaining a grid connection remains practical and usually mandatory – especially in winter, when solar generation and battery capacity cannot cover full demand. 100% self-sufficiency is rarely economically viable using battery storage alone.
“A larger battery delivers better returns.” Often the opposite is true: oversized batteries rarely fully charge through winter and unnecessarily extend your payback period. Correct sizing matters far more than maximum capacity.
“Batteries never make financial sense.” This outdated belief comes from the era of storage prices around €1,900/kWh (2015). With today’s 2026 pricing of €350–500/kWh, the economics have completely transformed.

Quick Reference Table: Correct Storage Sizing Guidelines

Solar System Capacity	Recommended Battery Size	Typical Household Profile
3–5 kWp	3–5 kWh	1–2 people, low energy consumption
6–8 kWp	6–10 kWh	3–4 people, average power usage
9–12 kWp	10–15 kWh	Family home with heat pump or electric vehicle
13+ kWp	15–20 kWh	Large residence, combined carport + EV charging setup

Rule of thumb: 1–1.5 kWh of storage per 1 kWp of installed solar power. Minor individual adjustments based on your unique consumption pattern are normal and often beneficial.

Full Overview: All Key Benefits of Solar Battery Storage

Higher self-consumption: Far more of your self-generated solar power is used on-site instead of exported at low rates
Protection against electricity price volatility: A large portion of your energy demand becomes stable and predictable long-term
Compatible with EVs and heat pumps: Absorbs large power demand spikes without straining the public grid
Optional backup power function: Bridges short grid outages (depends on system configuration, additional cost €300–2,000)
Higher property value: PV systems paired with battery storage are seen as a premium home feature on the real estate market
20-year planning security: Paired with legally guaranteed feed-in tariff income

FAQ

1. What advantages come from combining an aluminum solar carport with Ecosolarcarport battery storage?

It saves valuable rooftop space on your home, integrating solar panels, battery storage and an EV charger all in one structure. Self-consumption rates can reach up to 75%. The carport protects your vehicle from weather while powering your electric car with on-site solar energy. The full system delivers payback in roughly 9 years and eliminates expensive public charging costs.

2. How much can solar self-consumption rise after installing a battery system?

Without storage, households only utilize 25–35% of their self-produced solar power. A correctly sized LFP lithium battery lifts self-consumption to 60–80%, cutting costly grid electricity purchases and low-value excess energy exports.

3. Does a bigger battery always deliver better financial returns?

No, profitability declines as capacity increases beyond the ideal range. 5–10 kWh delivers the strongest cost-performance ratio. Oversized batteries rarely fully recharge during winter and extend your overall payback period. Standard sizing rule: 1–1.5 kWh storage per 1 kWp of solar capacity.

4. What ongoing annual expenses do solar battery storage systems incur?

Annual running costs total €50–80 for insurance, remote monitoring and routine maintenance. Batteries require replacement after 15–20 years; storage hardware prices are forecast to keep falling, so future replacements will cost less than your initial investment.

If you have any questions, please feel free.

The form can be filled in the actual website url.

When Is a Solar Battery Storage System Actually Worth It?最先出现在ecosolarcarport。

Benefit From Self Consumption Of Your PV System

行政 — Tue, 07 Jul 2026 03:30:25 +0000

PV System Self-Consumption

Self-consumption is the single most important lever for a profitable photovoltaic system in 2026. We break down realistic self-consumption rates, outline the four most profitable usage scenarios, and explain how storage, EV wallboxes and smart planning can drastically boost your self-used solar share.

What Does Self-Consumption Mean for PV Systems?

Self-consumption describes the percentage of self-generated solar power that you use directly within your household or commercial property – instead of exporting it to the public grid. The alternative is grid export, for which you receive a legally fixed EEG feed-in tariff. These tariff rates have fallen significantly in recent years, while grid electricity prices have risen, shifting the financial logic completely: Using your own solar power instead of selling it cheaply to the grid delivers far greater savings today.

Without an additional battery storage unit, a typical single-family home can reach roughly 30 to 40 percent self-consumption. With a correctly sized battery storage system, this figure rises to up to 80 percent – a massive difference for your system’s financial returns.

Useful Note

Self-consumption rate and self-sufficiency rate are often confused, but they describe separate metrics: The self-consumption rate measures how much of your generated solar power you consume on-site. The self-sufficiency rate shows what portion of your total electricity demand is covered by solar generation. With storage and properly sized panels, self-sufficiency rates of 80 to nearly 100% are achievable depending on the season.

The Four Key Self-Consumption Scenarios

Solar power can be consumed directly in multiple ways. These four use cases are the most widespread among German single-family homes and deliver the largest cost savings:

Direct Household Power Usage

Refrigerators, lighting, washing machines and other appliances run on free midday solar power instead of expensive grid electricity – simple, no extra investment, with immediate savings.

Charge Electric Vehicles via Wallbox

Excess solar power charges your EV instead of being exported to the grid. A wallbox can boost your self-consumption rate by around 10 to 20 percent. This speeds up the payback period for your charging hardware, even when factoring current ev charging station installation cost figures.

Store Surplus Solar Power in Batteries

A battery storage unit captures midday excess generation and makes it available for evening and night use – the most impactful tool to raise your self-consumption share.

Run Heat Pumps With Solar Power

Heating and domestic hot water powered by solar instead of grid electricity adds another 10 to 20 percent to self-consumption – especially effective when combined with battery storage and a solar carport. Learn more about solar carports

Energy Management Systems as a Boost Tool

An Energy Management System (EMS) intelligently links all four scenarios together. It analyzes real-time power generation and household demand, automatically controlling when the wallbox charges, when the battery discharges, and when energy-intensive appliances operate. Pairing storage, smart meters and an EMS delivers the most consistent self-consumption gains, with no need for constant manual adjustments from the homeowner.

Why High Self-Consumption Makes Financial Sense

The core benefit comes from the price gap between self-generated solar power and grid electricity. At the start of 2026, the average residential electricity price in Germany sits at roughly 37 cents per kWh, while self-produced solar power costs only approximately 10 to 13 cents per kWh depending on your system. Every kWh you consume on-site immediately saves you 24 to 27 cents compared to buying power from the grid.

Immediate Cost Reduction: The higher your self-consumption rate, the less expensive grid electricity you need to purchase.
Protection Against Price Volatility: You become less exposed to future electricity price hikes and energy market crises.
Improved System Profitability: A high self-consumption percentage significantly shortens your investment’s payback period.
Offset Negative Price Legislation Impacts: The 2025 Solar Peak Law removes feed-in tariff payments during negative electricity prices – high self-consumption softens this financial hit.

Practical Example: How Self-Consumption Impacts Your Annual Savings

This clear calculation example illustrates exactly how self-consumption impacts yearly cost savings, based on a typical four-person single-family home with a 10 kWp PV array:

Calculation Example – 10 kWp PV System With Battery Storage

Key Metric	Value
Annual Household Electricity Consumption	4,000 kWh
Annual PV System Output (10 kWp)	10,000 kWh
Self-Consumption Rate With Storage	60–80 %
Grid Electricity Retail Price (2026)	approx. 37 cents/kWh
EEG Feed-In Tariff Rate	approx. 7.8 cents/kWh

At a 60% self-consumption rate (equal to 2,400 kWh of on-site solar usage), annual savings compared to full grid power purchase reach roughly €2,200 to €2,300. The remaining exported power generates an additional feed-in revenue of around €300 per year. All together, a 10 kWp system with battery storage typically pays for itself within eight to ten years under this consumption profile.

The closer your self-consumption rate gets to 80%, the larger your yearly savings – and the shorter your payback timeline. This is why investments in batteries, EV wallboxes and smart control systems are worthwhile in the vast majority of cases.

Targeted Strategies To Boost Your PV Self-Consumption

Beyond the four core usage scenarios, these proven adjustments can lift your self-consumption percentage even further:

1. Oversize Your PV Array Slightly

A moderately larger PV system generates sufficient power even on overcast days and better covers peak household demand. Larger systems also usually have a lower per-kWp cost and faster payback period.

2. Align Panel Orientation With Your Consumption Routine

Homeowners who are out during the day and use most power in the evening benefit from a slightly west-facing panel setup. Early risers often see better results with east-facing modules. The minor drop in total annual yield is almost always offset by higher self-consumption rates.

3. Match Battery Storage Size To Your PV Capacity

A general rule of thumb is 1 kWh of battery storage capacity per 1 kWp of PV power output. An undersized battery cannot unlock full self-consumption potential, while an oversized unit delivers minimal extra benefit, as solar energy cannot be stored for weeks at a time.

4. Shift Flexible Loads To Sunlight Hours

Running washing machines, dishwashers and other flexible appliances during peak midday sunlight boosts self-consumption with zero extra hardware cost – the most convenient way to automate this is via an energy management system.

Quick Recap

Self-consumption is the decisive profitability factor for any PV system in 2026. With battery storage, EV wallboxes, heat pumps and intelligent load control, you can lift your self-consumption share from an average 30–40% all the way up to 80% – with tangible impacts on your annual savings and system payback timeline.

FAQ

1. How much self-consumption is possible without battery storage?

Without an additional battery storage unit, single-family homes achieve a self-consumption rate of roughly 30 to 40 percent.

2. Is a battery storage system worth installing for a PV array?

Yes, battery storage is nearly always a worthwhile investment. It boosts self-consumption up to 80% and significantly increases your annual electricity savings.

3. What storage capacity size should my battery have?

The standard rule of thumb: 1 kWh of battery storage capacity per 1 kWp of PV system power output. This delivers the optimal sizing for most residential households.

4. Does an EV wallbox increase self-consumption?

Yes, charging your electric vehicle with surplus solar power raises self-consumption by 10 to 20 percent and delivers excellent cost efficiency.

If you have any questions, please feel free.

The form can be filled in the actual website url.

Benefit From Self Consumption Of Your PV System最先出现在ecosolarcarport。

Planning a PV system – step-by-step instructions

行政 — Sat, 30 May 2026 09:26:21 +0000

PV-Anlagen machen von Strompreisen unabhängiger, liefern nachhaltige Energie und schonen Ressourcen. Damit das gelingt, kommt es auf die richtige Solaranlage, passend zu Strombedarf, Standort und Budget an. Um eine erfolgreiche PV-Anlage selber zu planen, ist ein verlässlicher Partner hilfreich. Wir erklären, wie eine gründliche PV-Planung aussieht und wie Sie Ihre individuelle Komplettlösung finden.

Schritt 1: Den eigenen Energiebedarf und Stromverbrauch kennen

Mit einer PV-Anlage gehen komplexe Vorüberlegungen einher. Vor allem, wenn Sie selbstständig Ihre Solaranlage planen wollen. Möchten Sie die eigentliche Umsetzung lieber Experten überlassen, Ihre Anforderungen jedoch genau kennen, dann gehen Sie folgt vor:

Stromverbrauch analysieren

Analysieren Sie Ihren Stromverbrauch und Ihre Stromkosten der letzten fünf Jahren. So erhalten Sie einen Überblick über die Entwicklung Ihres Stromverbrauchs und Ihrer Stromkosten pro kWh.

Energiebedarf bestimmen

An Ihrem Stromverbrauch erkennen Sie Ihren Energiebedarf. Zur Orientierung:

2-Personen-Haushalte: ca. 3.000 kWh im Jahr
4-Personenhaushalte: ca. 4.500 kWh im Jahr

Beziehen Sie auch geplante Anschaffungen wie E-Fahrzeuge mit ein, die sich auf den Bedarf auswirken werden.

Eigenverbrauch und Einspeisung definieren

Aus Ihrem Energiebedarf leiten Sie ab, wieviel Sie davon mit Solarstrom abdecken möchten und wieviel kWp dafür nötig sind.

10 kWp Anlage: Jahresertrag ca. 10.000 kWh
Ohne Speicher: bis zu 40 % Eigenverbrauch
Mit Speicher: bis zu 75 % Eigenverbrauch

Je mehr Eigenverbrauch die Anlage abdeckt und je weniger Netzstrom Sie brauchen, desto rentabler.

Ertrag und Einspeisevergütung 2026

Überschüssigen Solarstrom speisen Sie in das Stromnetz ein und erhalten dafür eine Einspeisevergütung nach EEG 2026: aktuell ca. 7,20 Cent pro kWh.

Beispielrechnung 2026:
2.500 kWh eingespeister Strom × 0,072 € = 180 € jährliche Einnahmen

Schritt 2: Eine Standortanalyse und Flächenprüfung durchführen

Fast wichtiger als Ihr Energiebedarf ist die Frage, wo und wie die Montage erfolgen soll. Neben dem klassischen Hausdach bieten Freiflächen oder Parkplätze ideale Voraussetzungen für moderne Solarcarports. Dies bestimmen vor allem diese fünf Aspekte:

Verfügbare Fläche (Dach & Stellplatz)

Von Größe und Ausrichtung der Fläche hängt maßgeblich die Wirtschaftlichkeit und Dimensionierung Ihrer PV-Anlage ab. Als Faustregel gilt:

1 kWp benötigt ca. 5 m² Fläche
Ab 10 kWp: ca. 50 m² Gesamtfläche erforderlich (entspricht etwa der Dachfläche eines Einfamilienhauses oder 2–3 Pkw-Stellplätzen für einen Solarcarport)

Besonderheit: Standortanalyse für Solarcarports

Wenn Sie die Installation eines Solarcarports auf Ihrem Parkplatz oder Grundstück planen, müssen im Vorfeld spezifische bauliche Bedingungen geprüft werden:

Fundament und Bodenbeschaffenheit: Im Gegensatz zur Dachmontage erfordert ein Solarcarport ein solides Beton- oder Schraubfundament, das die Traglast der Aluminium- oder Stahlkonstruktion sicher aufnimmt.
Einfahrthöhe und Stellplatzmaße: Die Konstruktion muss auf die Fahrzeugtypen (Pkw, SUV oder Transporter) und die nötige Rangierfreiheit abgestimmt sein.
Zufahrt und Kabelwege: Prüfen Sie den optimalen Leitungsweg vom Stellplatz zum Hausanschlussraum bzw. zum Wechselrichter und der geplanten Wallbox.

Ausrichtung und Neigung

Die Idealbedingung für PV-Module ist eine Süd-Ausrichtung mit 30 bis 40 Grad Neigungswinkel. Bei Ost-West-Ausrichtungen ist eine Neigung von 0 bis 20 Grad optimal. Moderne Solarcarports nutzen oft flachere Neigungswinkel (ca. 5 bis 15 Grad), um maximale Stabilität und harmonische Optik zu vereinen, während die Module dennoch effizient reinigend wirken.

Beschaffenheit, Statik und Lasten

Die Tragkonstruktion – ob Hausdach oder Carport-Gestell – muss extremen Witterungsbedingungen standhalten. Bei der Standortanalyse müssen die lokalen **Windlastzonen** und **Schneelastzonen** zwingend berücksichtigt werden, um die statische Sicherheit und eventuelle Zertifizierungen (z. B. CE-Konformität) zu gewährleisten.

Verschattung

Die geographische Lage sowie umliegende Objekte wirken sich direkt auf den Ertrag aus. Achten Sie bei Dächern auf Schornsteine oder Satellitenschüsseln. Bei Solarcarports im Hof- oder Einfahrtsbereich ist besonders auf den Schattenwurf durch das Hauptgebäude, Nachbarhäuser, Bäume oder Straßenlaternen zu achten.

Schritt 3: Die erforderliche Anlagengröße bestimmen

Sie kennen nun Ihren Stromverbrauch und haben die Gebäudesituation analysiert. Jetzt lassen sich die Dimensionierung und Leistung definieren.

Deutschland Durchschnitt: 8 bis 15 kWp auf Einfamilienhäusern
5 kWp: ca. 5.000 kWh Jahresertrag
10 kWp: ca. 10.000 kWh Jahresertrag
10 kWp umfassen etwa 23 bis 25 Module

Wichtig: Wählen Sie eine Dimensionierung, die auch einen zunehmenden Eigenverbrauch abdecken kann. Größere Anlagen sind wirtschaftlicher und amortisieren sich schneller.

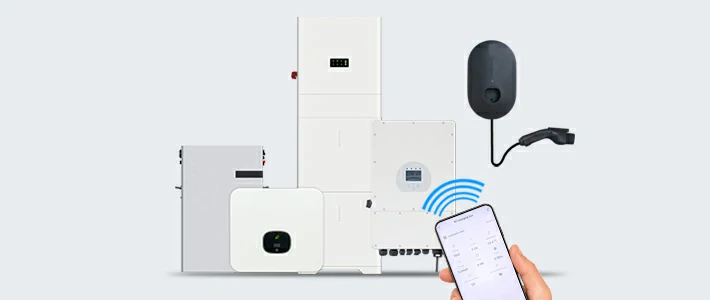

Schritt 4: Die richtigen Komponenten auswählen

Wechselrichter

Das Herzstück jeder PV-Anlage. Er wandelt Gleichstrom in Wechselstrom um, steuert die Anlage und schützt vor Überlastungen. Der Wirkungsgrad sollte zur kWp-Leistung passen.

Verkabelung

Witterungs-, temperatur- und UV-beständig. Der Anschluss an das Stromnetz darf nur durch eingetragene Elektriker erfolgen.

Optionale Komponenten

Speicher: Bei 10 kWp empfiehlt sich ein 10 kWh-Speicher
Wallbox: Pro Wallbox zusätzlich 2,5 kWp PV-Leistung kalkulieren
Mess-Systeme: Zweirichtungszähler für korrekte Abrechnungen

Schritt 5: Wirtschaftlichkeitsprüfung durchführen

Bei optimalen Bedingungen amortisieren sich 8 bis 15 kWp Anlagen in etwa 8 bis 11 Jahren. Mit Speicher beträgt die Amortisationszeit 10 bis 15 Jahre.

Beispiel:
10 kWp PV-Anlage inkl. Speicher und Montage (ca. 20.000 €)
Bei 60 % Eigenverbrauch amortisiert sie sich in etwa 8 Jahren.

Schritt 6: Genehmigungen einholen und rechtliche Anforderungen erfüllen

Baugenehmigungen: Meist nur bei denkmalgeschützten Gebäuden
Registrierung beim Netzbetreiber und Marktstammdatenregister: Pflicht
Anmeldungen beim Finanzamt: Hängt von Gewinn und Art ab
EEG-Vorgaben: Erforderlich für Einspeisevergütung

Alternativ: PV-Anlage von Experten planen lassen

Von einer eigenständigen Planung und Umsetzung wird oft abgeraten – Herstellergarantien setzen eine fachgerechte Installation voraus.

Experten übernehmen Planung, Montage, Inbetriebnahme und Nachbetreuung – weniger Aufwand, optimale Lösung aus einer Hand.

Haben Sie konkrete Fragen zu Ihrem Projekt?

Wir beraten Sie kostenlos und unverbindlich – zu Standort, Größe, Statik und Förderung.

Jetzt unverbindlich anfragen →

FAQ

1. Wie viel Photovoltaik-Leistung (kWp) und Fläche benötige ich für meinen Haushalt?

Als Faustregel gilt: 1 kWp Leistung benötigt etwa 5 m² Fläche. Für ein typisches Einfamilienhaus oder einen Solarcarport mit 2–3 Pkw-Stellplätzen wird oft eine 10 kWp Anlage (ca. 50 m² Gesamtfläche) empfohlen. Diese erzeugt pro Jahr rund 10.000 kWh Strom und kann den Bedarf eines typischen 2- bis 4-Personen-Haushalts (ca. 3.000 bis 4.500 kWh/Jahr) inklusive zukünftiger Anschaffungen wie E-Fahrzeuge optimal abdecken.

2. Lohnt sich ein Stromspeicher und wie hoch ist der Eigenverbrauch im Jahr 2026?

Ja, ein Speicher erhöht die Rentabilität Ihres Systems deutlich. Ohne Speicher können Sie bis zu 40 % Ihres Solarstroms selbst verbrauchen. Mit einem passenden Stromspeicher (z. B. ein 10 kWh Speicher bei einer 10 kWp Anlage) steigt Ihr Eigenanteil auf bis zu 75 %. Überschüssiger Strom wird gemäß EEG 2026 mit aktuell ca. 7,20 Cent pro kWh vergütet und in das öffentliche Netz eingespeist.

3. Was muss bei der Standortanalyse für einen Solarcarport besonders beachtet werden?

Im Vergleich zur klassischen Dachmontage erfordert ein Solarcarport eine Prüfung spezifischer baulicher Bedingungen:
1.Fundament & Statik: Ein solides Beton- oder Schraubfundament ist zwingend erforderlich, um die Traglast der Aluminiumkonstruktion sicher aufzunehmen. Zudem müssen lokale Wind- und Schneelastzonen berücksichtigt werden, um die statische Sicherheit zu gewährleisten.
2.Maße & Wege: Die Einfahrthöhe und Stellplatzmaße müssen zu den Fahrzeugen passen. Zudem müssen die optimalen Kabelwege vom Stellplatz zum Hausanschlussraum bzw. zur Wallbox geplant werden.
3.Verschattung: Achten Sie besonders auf den Schattenwurf durch das Hauptgebäude, Nachbarhäuser, Bäume oder Straßenlaternen im Hof- und Einfahrtsbereich.

4. Wie lange dauert die Amortisation einer PV-Anlage und kann ich die Planung selbst übernehmen?

Unter optimalen Bedingungen amortisieren sich PV-Anlagen von 8 bis 15 kWp ohne Speicher in etwa 8 bis 11 Jahren (mit Speicher ca. 10 bis 15 Jahre). Obwohl Sie die Vorplanung selbst durchführen können, wird von einer eigenständigen Montage abgeraten. Für Herstellergarantien und die gesetzlich vorgeschriebene Netz-Anmeldung ist eine fachgerechte Installation durch Experten (wie eingetragene Elektriker) erforderlich. Eine Komplettlösung aus Expertenhand minimiert Ihren Aufwand und sichert maximale Erträge.

Planning a PV system – step-by-step instructions最先出现在ecosolarcarport。

What is an aluminum solar carport?

行政 — Tue, 26 May 2026 03:49:39 +0000

Steel rusts, wood swells – and aluminium? It simply stays what it is. Once you have installed an aluminium solar carport, you'll quickly wonder why you ever considered anything else. This guide explains step by step what makes this material so compelling – without technical jargon.

What exactly is an aluminium solar carport?

A solar carport is essentially a covered parking space for your car – except that the roof is not made of shingles or foil, but of solar panels that generate electricity for you every day. The supporting frame beneath – the actual structure – can be made from various materials. By far the most popular choice for private homes today is aluminium.

The aluminium structure serves two purposes simultaneously: it holds the solar panels stably in the correct orientation towards the sun – and at the same time protects your vehicle from rain, hail and snow.

Why aluminium? The key advantages at a glance

Before we dive into the details, here is a brief overview of the key strengths of this material:

100% corrosion-free

Aluminium does not rust – even after 30 years outdoors the surface remains intact.

Extremely lightweight

Three times lighter than steel – less foundation required, easier installation, lower structural demands.

Virtually maintenance-free

No painting, no impregnating, no retreating – once installed, simply forget about it.

Fully recyclable

At the end of its service life, aluminium is melted down and reused with virtually no loss.

Snow- & storm-resistant

Reinforced profiles withstand snow loads up to 1.2 kN/m² and wind loads up to 140 km/h.

Visually flexible

Powder-coated in any RAL colour – the carport adapts to your home, not the other way around.

No rust, no peeling paint – why aluminium is superior to other materials

Anyone who has seen a steel carport after ten years knows the picture: rust spots at the welds, peeling protective paint, touch-ups that no longer adhere properly. This is not a quality defect – it is simply the nature of the material. Steel oxidises on contact with moisture. And no matter how well it is coated: water always finds a way in somewhere.

Good to know

Aluminium forms an ultra-thin oxide layer when exposed to air – and this layer protects the material on its own. This process is called "passivation" and is the reason why aluminium profiles still look like new after decades. You don't need to do anything.

Wood has its own charm, but is equally high-maintenance: regular oiling, painting or glazing is a must, otherwise the material shrinks and cracks. Especially in regions with alternating humid climates – which covers most of Germany, Austria and Switzerland – wood is not an ideal choice for permanently cantilevered structures.

Aluminium simply does not have these problems. The surface remains smooth, dimensional stability is maintained, and load-bearing capacity does not decrease over decades. A maintenance-free aluminium solar carport frame system is literally installed once and then forgotten – in the best sense of the word.

Fig.: Anodised aluminium connection profile – corrosion-resistant, dimensionally stable, no maintenance required.

Solar carport with reinforced aluminium structure – what does that mean in practice?

Not all aluminium carports are the same. There is a wide range on the market – from inexpensive kit systems to professional solar carports with reinforced aluminium structures. What exactly does this mean in practice?

Profile thickness and cross-sectional shape

High-quality systems use extruded aluminium profiles with wall thicknesses of 2 to 4 millimetres. The cross-sectional shape – whether rectangular, double-T or hollow chamber – is crucial for rigidity. Good manufacturers have load-bearing calculations checked by independent structural engineering firms and document the values in the data sheet.

Snow load and wind zone

In Germany and Switzerland, specific standards apply for snow and wind loads (DIN EN 1991, SIA 261). A reinforced aluminium frame system is dimensioned to meet the load assumptions for your specific location – not just the average, but for the relevant load zone. Always ask for proof of compliance when purchasing.

Practical tip

Ask the supplier for a brief structural engineering report or a type approval certificate. Reputable manufacturers are happy to provide these documents. If they are missing, exercise caution.

Bolted connections vs. welds

Modern aluminium carport systems are not welded, but bolted and slotted together. Bolted connections are controllable, can be retightened and are repairable. Welds, on the other hand, create thermal stresses and often require post-treatment to ensure corrosion protection.

Easier to install: aluminium is kind to your foundations

⅓

Weight of steel – at equal load-bearing capacity

30+

Years of service life without maintenance

Coats of paint needed over the entire lifetime

Aluminium at a glance

Density	2.7 g/cm³
vs. Steel	3× lighter
Corrosion	none
Recyclable	~100%
Service life	30+ years
Maintenance	none

The low weight of aluminium has a practical advantage that many homeowners initially underestimate: the foundation. Choosing a heavier material means more concrete, deeper foundations and potentially more expensive earthworks. An aluminium carport can often be anchored on simple point foundations (so-called ground anchors or base plates) – saving time and money during installation.

Especially on sealed surfaces (paved areas, concrete floors), this is a decisive advantage. For some systems, grouted sleeve anchors are sufficient instead of an elaborate concrete base slab.

Fig.: Compact ground anchoring – less civil engineering, less effort, lower costs.

In the commercial sector, integrated cable management is a particularly important feature. Professional systems have aluminium profiles with internal hollow chambers through which all DC and AC cables are routed invisibly and protectedly – this also meets the requirements of the VDE standard for fixed installations.

Sustainability: aluminium and its environmental footprint

A frequently raised objection is: "Isn't the production of aluminium very energy-intensive?" That is correct – primary production from bauxite consumes a lot of electricity. But here comes the key point: aluminium is recyclable to almost 100%, and reprocessing requires only about 5% of the energy of new production.

In practice this means: a solar carport frame that has generated electricity for 30 years delivers a valuable raw material back into the cycle at the end of its life. The CO₂ footprint of the material is offset – together with the solar power generated – typically within just a few years.

Good manufacturers also rely on aluminium with a high recycled content (so-called "secondary aluminium") – this further significantly improves the environmental balance. Ask specifically about this when purchasing.

Installation: a finished carport in half a day

Another advantage that is often underestimated in everyday use is the ease of installation of aluminium systems. Since the profiles are already precisely cut and often pre-drilled at the factory, in many cases only a screwdriver and cordless drill are needed on site. Welding is completely unnecessary.

Typical installation time for a single carport (2 parking spaces, 8–10 modules): 4 to 8 hours with two tradespeople. Many suppliers deliver the kits with step-by-step instructions and an assembly video – however, the electrical connection must always be carried out by a licensed electrician.

Pre-installation checklist

Check building permit · Define location and orientation of modules · Determine foundation type · Plan electrician in advance · Prepare grid registration with network operator (in DE: Marktstammdatenregister)

Conclusion

An aluminium solar carport is not just a covered parking space with solar panels. It is a carefully thought-out, durable and sustainable energy investment – without follow-up costs from rust, paint or structural decay. Whether it stands in the garden of a private home or is used as a premium aluminium solar carport for commercial use: aluminium combines technical strength with aesthetic flexibility and an outstanding service life.

Choosing a maintenance-free aluminium solar carport frame system is a one-time decision – that lets you benefit from it for decades. That is the most honest summary we can give you.

Do you have specific questions about your project?

We advise you free of charge and without obligation – on location, size, structural engineering and subsidies.

Request a free quote now →

FAQ

1. Why should I choose an aluminium carport instead of wood?

Aluminium is extremely durable, weather-resistant and absolutely easy to maintain. Unlike wood, you never need to repaint an aluminium carport or treat it against rot. It retains its modern appearance for decades.

2. How stable and safe is an aluminium carport in extreme weather?

Our aluminium structures offer maximum stability at minimal dead weight. They are specifically tested for high snow loads and strong wind forces. In addition, the material is completely rust-free and UV-resistant.

3. Is an aluminium carport an environmentally friendly choice?

Yes, absolutely. Aluminium is an extremely sustainable material, as it is 100% recyclable without any loss of quality. In addition, the decades-long service life ensures that resources are conserved in the long term.

4. How complex is the installation of an aluminium carport?

Thanks to the modular design and precisely prefabricated components, installation is particularly fast and straightforward. This saves time and costs compared to heavy steel or individual wooden structures.

What is an aluminum solar carport?最先出现在ecosolarcarport。
